Smart Wireless Control: Fully adjustable via app for easy setup, interconnection, and customisation.

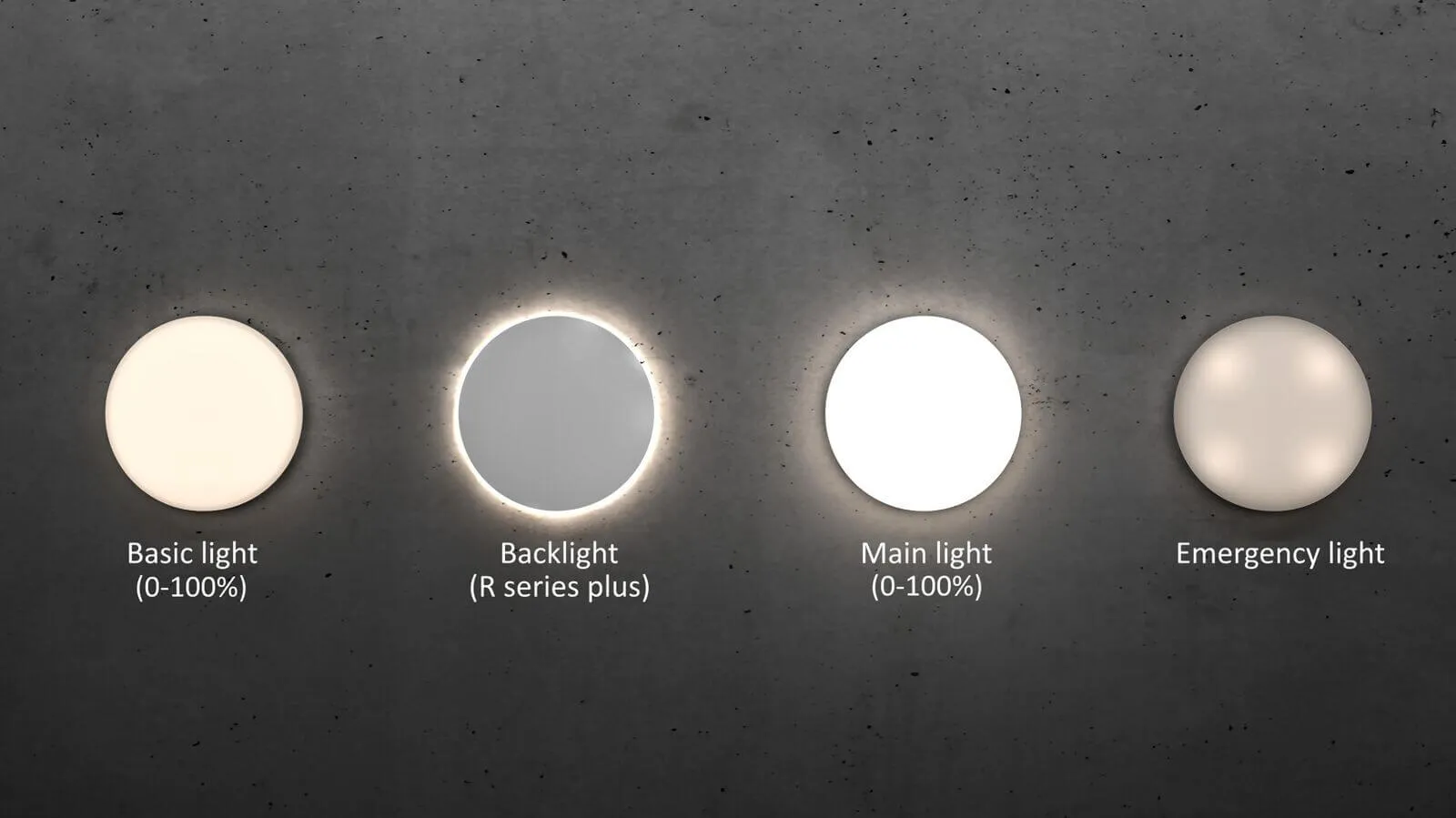

- Versatile Lighting Functions: Features basic light level, dimmable main light, and emergency light mode.
- Precision HF Sensor: High-frequency sensor with a 10m detection range for reliable motion detection.
- Bright & Efficient: 8.5W power delivering 992 lm with a warm 3000K colour temperature.
- Even Light Distribution: Opal diffuser bonnet ensures a uniform and glare-free lighting effect.
- Emergency Lighting Ready: Can be connected to central battery systems for backup lighting.
- Eco-Friendly Packaging: Multipack design reduces material waste and supports sustainability.
----------
Sensor Light 4.0 – Precision, Efficiency & Seamless Illumination
Designed for maximum performance and versatility, the RS PRO R Series Basic delivers precision motion detection, outstanding efficiency, and seamless light distribution. Available in two sleek housing designs (round or cornered) and five different sizes, this lighting solution adapts to both new builds and renovations with ease.
With adjustable lighting levels and intelligent connectivity, the RS PRO R Series Basic offers customisable illumination up to 3200 lumens in either neutral white or warm white temperatures. The advanced HF sensor ensures high-precision motion detection, while the convenient neighbourhood group function enables seamless light synchronization for added safety and comfort.
Key Features:
- Smart Sensor Technology: High-frequency sensor ensures accurate motion detection and efficient lighting.
- Customisable Illumination: Adjustable basic and main light levels via smartphone.
- Seamless Group Function: Neighbourhood lighting synchronization enhances safety and comfort.
- Versatile Design Options: Available in round or cornered housing with multiple sizes.
- High Brightness & Efficiency: Delivers up to 3200 lumens with outstanding energy savings.
- Emergency Lighting Ready: Optional battery-powered module or central battery system connectivity for uninterrupted illumination.
Whether for new builds or renovations, the RS PRO R Series Basic offers one of the most advanced and complete lighting solutions available today.
----------
| Category | Specification |
|---|---|

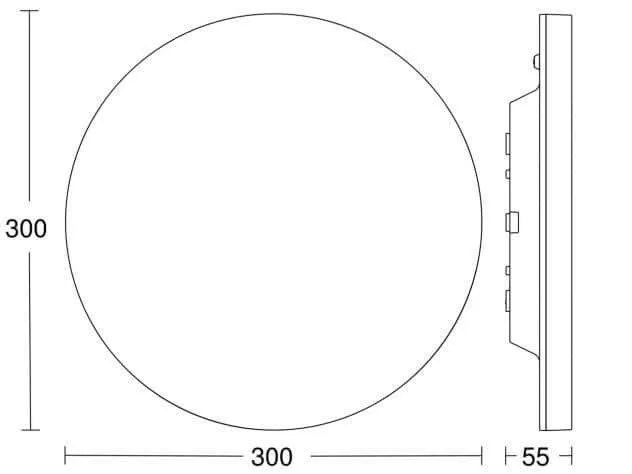

| Dimensions (Ø x H) | 300 x 55 mm |
| With lamp | Yes, STEINEL LED system |
| With motion detector | Yes |
| Manufacturer's Warranty | 5 years |
| Settings via | Bluetooth |
| With remote control | No |
| Version | Warm white |
| PU1, EAN | 4007841067816 |
| Application, place | Indoors |
| Application, room | Corridor/aisle, changing room, function room/ancillary room, kitchenette, stairwell, indoors |
| Colour | White |
| Fuse protection B10 | 46 |
| Fuse protection B16 | 74 |
| Fuse protection C10 | 77 |
| Fuse protection C16 | 122 |
| Installation site | Wall, ceiling |
| Installation | Wall, ceiling, surface wiring |
| Impact resistance | IK07 |
| IP-rating | IP40 |
| Protection class | II |
| Ambient temperature | From -20 up to 40 °C |
| Housing material | Plastic |
| Cover material | PC, opal |
| IP-rating, ceiling | IP40 |
| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Power consumption | 0.3 W |
| Output | 8.5 W |
| Starting current, maximum | 13 A |
| Mounting height max. | 4.00 m |
| HF-system | 5.8 GHz |
| Slave mode selectable | Yes |
| Detection | Also through glass, wood, and stud walls |
| Capability of masking out individual segments | Yes |
| Electronic scalability | Yes |
| Mechanical scalability | No |
| Reach, radial | Ø 10 m (79 m²) |
| Reach, tangential | Ø 10 m (79 m²) |
| Detection angle | 360° |
| Photo-cell controller | Yes |
| Luminous flux total product | 992 lm |
| Total product efficiency | 117 lm/W |
| Colour temperature | 3000 K |
| Colour variation LED | SDCM3 |
