Product Details
＋
- Smart Wireless Control: Fully adjustable via app for easy setup, interconnection, and customisation.
- Versatile Lighting Functions: Features basic light level, dimmable main light, and emergency light mode.
- Precision HF Sensor: High-frequency sensor with a 10m detection range for reliable motion detection.
- Bright & Efficient: 8.5W power delivering 1053 lm with a neutral 4000K colour temperature.
- Even Light Distribution: Opal diffuser bonnet ensures a uniform and glare-free lighting effect.
- Emergency Lighting Ready: Can be connected to central battery systems for backup lighting.
----------
Smart, Efficient & Seamless Lighting
The RS PRO R Series Basic sets the standard for high-performance sensor lighting. With a high-precision HF sensor, exceptional efficiency, and uniform light distribution, this intelligent lighting solution is ideal for both new installations and renovations.
Available in two sleek housing designs (round or cornered) and five different sizes, the RS PRO R series can deliver up to 3200 lumens in either neutral or warm white. Smart connectivity allows users to adjust lighting levels via smartphone, providing total control over both basic and main lighting functions.
Key Features:
- Precision Motion Detection: High-frequency sensor ensures accurate movement detection and efficient operation.
- Customisable Smart Control: Adjust basic and main light levels effortlessly via smartphone.
- Neighbourhood Group Function: Seamless light synchronization enhances safety and convenience.
- Versatile Design Choices: Available in round or cornered housing with multiple size options.
- Powerful Illumination: Provides up to 3200 lumens in neutral or warm white tones.
- Emergency Lighting Ready: Optional battery-powered module or central battery connection ensures uninterrupted lighting during power outages.
With its modern design, smart functionality, and energy-efficient performance, the RS PRO R Series Basic is one of the most advanced and complete lighting solutions available today.
----------
| Category | Specification |
|---|---|

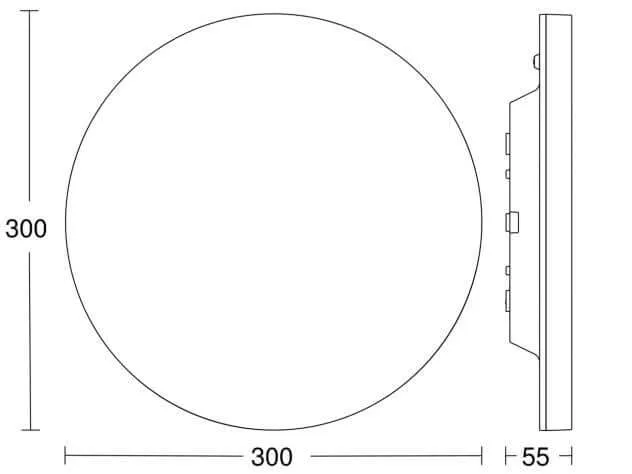

| Dimensions (Ø x H) | 300 x 55 mm |
| With lamp | Yes, STEINEL LED system |
| With motion detector | Yes |
| Manufacturer's Warranty | 5 years |
| Settings via | Bluetooth |
| With remote control | No |
| Version | Neutral white |
| PU1, EAN | 4007841067809 |
| Application, place | Indoors |
| Application, room | Corridor/aisle, changing room, function room/ancillary room, kitchenette, stairwell, indoors |
| Colour | White |
| Fuse protection B10 | 46 |
| Fuse protection B16 | 74 |
| Fuse protection C10 | 77 |
| Fuse protection C16 | 122 |
| Installation site | Wall, ceiling |
| Installation | Wall, ceiling, surface wiring |
| Impact resistance | IK07 |
| IP-rating | IP40 |
| Protection class | II |
| Ambient temperature | From -20 up to 40 °C |
| Housing material | Plastic |
| Cover material | PC, opal |
| IP-rating, ceiling | IP40 |
| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Power consumption | 0.3 W |
| Output | 8.5 W |
| Starting current, maximum | 13 A |
| Mounting height max. | 4.00 m |
| HF-system | 5.8 GHz |
| Slave mode selectable | Yes |
| Detection | Also through glass, wood, and stud walls |
| Capability of masking out individual segments | Yes |
| Electronic scalability | Yes |
| Mechanical scalability | No |
| Reach, radial | Ø 10 m (79 m²) |
| Reach, tangential | Ø 10 m (79 m²) |
| Detection angle | 360° |
| Photo-cell controller | Yes |
| Luminous flux total product | 1053 lm |
| Total product efficiency | 124 lm/W |
| Colour temperature | 4000 K |
| Colour variation LED | SDCM3 |
| Lamp | LED cannot be replaced |
| Base | Without |
| LED cooling system | Passive Thermo Control |
| Soft light start | Yes |
| Continuous light | Selectable |
| Lifetime LED according to IEC-62717 (L70) | 100,000 h |
| Lifetime LED according to IEC-62717 (L80) | 74,000 h |
| Lifetime LED according to IES TM-21 (L70) | >60,000 h |
| Lifetime LED according to IES TM-21 (L80) | >60,000 h |
| Colour Rendering Index CRI | = 82 |
| Photobiological safety in accordance with EN 62471 | RG1 |
| Article number | 067809 |
| European Article Number (EAN) | 4007841067809 |
| Transmitter power | < 1 mW |
| Basic light level function in per cent | 0 – 100% |
| Angle of aperture | 160° |
| Functions | Group parameterisation, Manual ON / ON-OFF, Neighbouring group function, Orientation light, Motion sensor, Light sensor, Encrypted communication, Adjustable fade time |
| Twilight setting | 2 – 2000 lx |
| Time setting | 5 s – 30 min |
| Interconnection | Yes |
| Interconnection via | Bluetooth Mesh Connect |
| Product category | Sensor-switched LED indoor light |
----------
