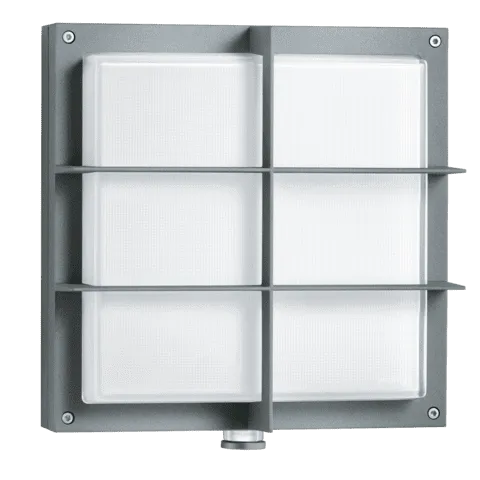

Key Features of the Steinel L 691 LED Outdoor Sensor Light
- Simple Square Design: A sleek and timeless shape, perfect for modern outdoor spaces.
- Ideal for Around the House: Provides reliable lighting for entryways, pathways, and other outdoor areas.
- Enhanced Protection: Comes with a durable grid guard for added security and impact resistance.
- Energy-Efficient Illumination: Delivers 753 lumens of light while consuming just 9 W, ensuring bright and efficient lighting.
- Advanced Motion Detection: Features a 360° infrared mini sensor with a 7 m detection range for reliable performance.
- Customisable Lighting: Includes basic light-level function, soft light start, and adjustable time and twilight thresholds.
- Interconnectable Design: Can be linked with other lights via cable for a cohesive lighting system.
----------
Timeless Design Meets Unmatched Durability
The Steinel L 691 LED Outdoor Sensor Light combines a universally loved square design with cutting-edge LED and motion sensor technology. Engineered to meet high demand, this robust light delivers improved illumination, greater energy efficiency, and advanced functionality for modern homes and professional environments.
- Classic Square Design: A timeless shape that complements any outdoor space with its sleek and modern aesthetic.
- Enhanced Lighting Performance: Offers brighter illumination and superior efficiency for reliable outdoor lighting.
- Comprehensive Lighting Features: Includes a basic light-level function, soft light start, and adjustable time and twilight thresholds for tailored operation.
- Advanced Motion Detection: Equipped with a 360° infrared sensor and a 7 m detection range for dependable activation.
- Durable and Impact-Resistant: Features an aluminium base and an IK07-rated PMMA shade for long-lasting performance.
- Interconnectable Design: Easily connects to other lights via cable for seamless integration into larger lighting systems.
The L 691 LED Outdoor Light is the perfect blend of style, durability, and innovation, making it an excellent choice for enhancing your outdoor spaces with reliable and efficient lighting.
----------
Dimensions (L x W x H) | 126 x 291 x 303 mm |
Mains power supply | 220 - 240 V / 50 - 60 Hz |
Sensor Technology | passive infrared |
Output | 8,5 W |
Interconnection | Yes |
Interconnection via | Cable |
Slave modeselectable | No |
Luminous flux | 576 lm |
Stroboscopic effect (SVM) | 1,3 SVM |
Efficiency | 68 lm/W |
Gesamtprodukt Effizienz | 68 lm/W |
Colour temperature | 3000 K |
Colour variation LED | SDCM3 |
Colour Rendering Index | 82 |
With lamp | Yes, STEINEL LED system |
Lamp | LED cannot be replaced |
LED life expectancy (25 °C) | > 60000 h |
Life expectancy of power supply unit (25 °C) | > 60000 h |
Base | without |
LED cooling system | Passive Thermo Control |
With motion detector | Yes |
Detection angle | 360 ° |
Capability of masking out individual segments | Yes |
Electronic scalability | No |
Mechanical scalability | No |
Reach, radial | r = 1.5 m (7 m²) |
Reach, tangential | r = 7 m (154 m²) |
Continuous light | selectable, 4h |
Photo-cell controller | Yes |
Twilight setting | 2 - 1000 lx |
Time setting | 5 s - 15 Min. |
Basic light level function | Yes |
Basic light level function time | 10/30 min, all night |
Functions | 4 programme settings geared to practical needs, can be selected on removable sensor module |
Soft light start | Yes |
Impact resistance | IK07 |
IP-rating | IP44 |
Protection class | II |
Ambient temperature | -20 - 50 °C |
Housing material | Aluminium |
Cover material | Plastic, opal |
Manufacturer's Warranty | 5 years |
Settings via | Potentiometers |
With remote control | No |
Installation site | wall |
Cover material | shrouds |
Version | PMMA anthracite |
----------
----------
