Product Details
＋
SLM-SB-L10V1-20Q

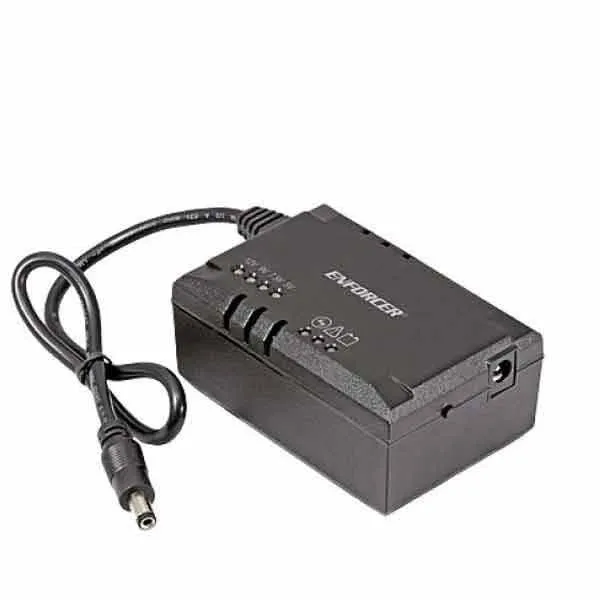

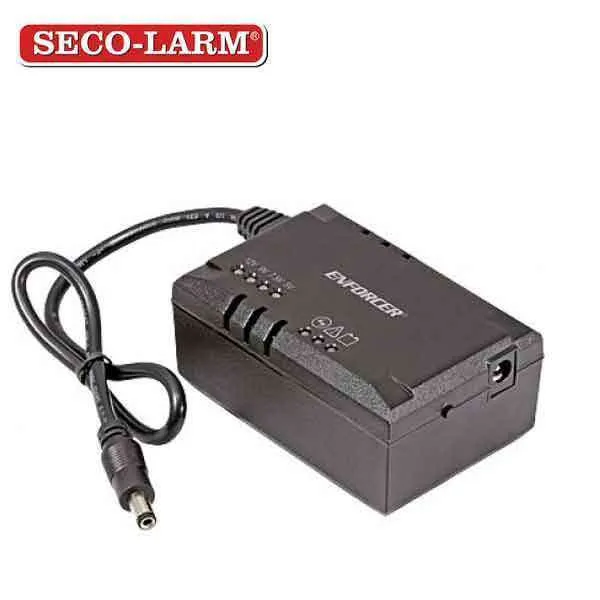

ENFORCER Plug-and-Play Backup Power units provide backup power to power devices during temporary power outages. Installs between the original power adapter and the powered device and auto-selects 5, 7.5, 9, or 12VDC.
- Real-time backup power with no break when input power is lost
- DC UPS Auto-start
- Batteries provided by GE (2600mAh user-replaceable Lithium Ion - SB-P1012-26Q /2000mAh lithium polymer - SB-L10V1-20Q)
- Over-discharge, overcharge, overload, short-circuit, and surge protection on input and output
- LED indicators for power and backup operation
- Auto-recognizes voltage (5/7.5/9/12VDC) input and sets corresponding output
- Additional indicator LEDs for output voltage and an audible/visible (LED) alarm warning of an overload, voltage issue, or low battery
| Type | In-line UPS |
| Input | 5/7.5/9/12VDC±10% |
| Input Protection | Overload and short-circuit fuse |
| Input Jack Type | 5.5 x 2.1 mm DC Jack |
| Output | Auto-configure 5/7.5/9/12VDC±5% |
| Output Power Rating | 10W |
| Output Protection | Over-discharge, overload, short-circuit protection |
| Battery | GE Lithium Polymer 3.7VDC/2000mAh |
| Battery Protection | Overcharge, over-discharge, overload, short-circuit |
| Backup Time | Half Load- 60 min, Full Load- 25 min |
| LED Indicators | Voltage, power, alarm, backup |
| Output Cord | 12" (30.5cm) |
| Output Plug | 5.5x2.1mm DC plug |
| Operating Temperature | 32~104°F (0~40°C) |
| Operating Humidity | 0~95% non-condensing |
| Dimensions | 3-3/8" x 2-1/4" x 1-21/32" (85 x 57 x 42 mm) |
| Weight | 4.3-oz (121g) |
