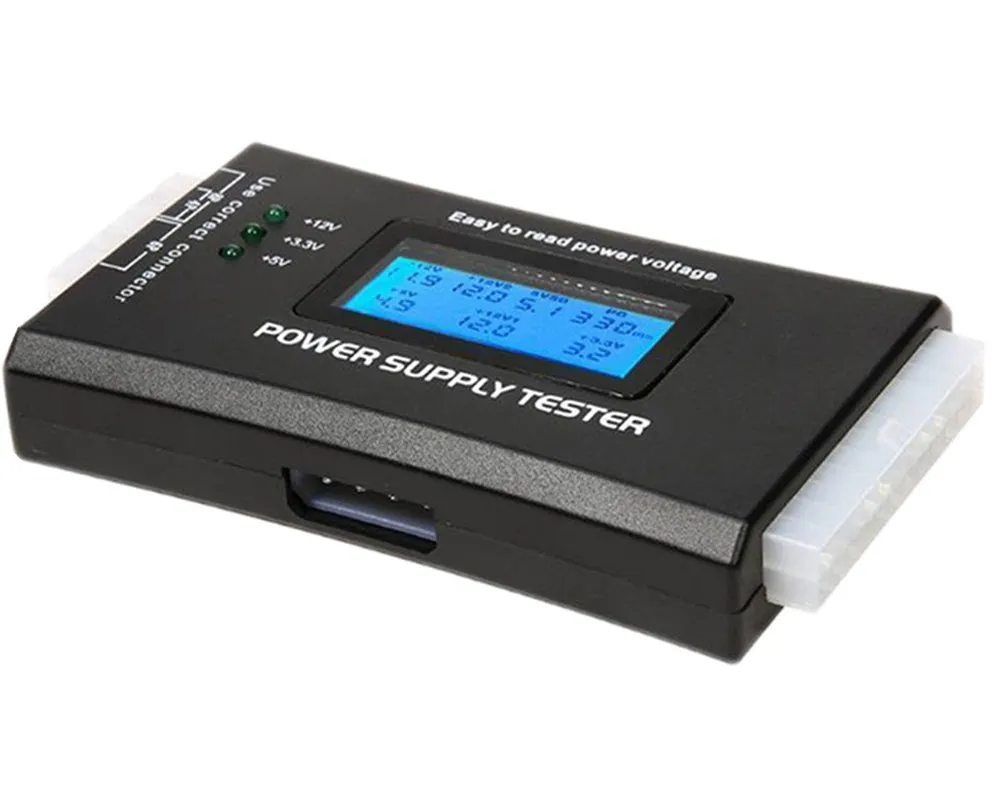

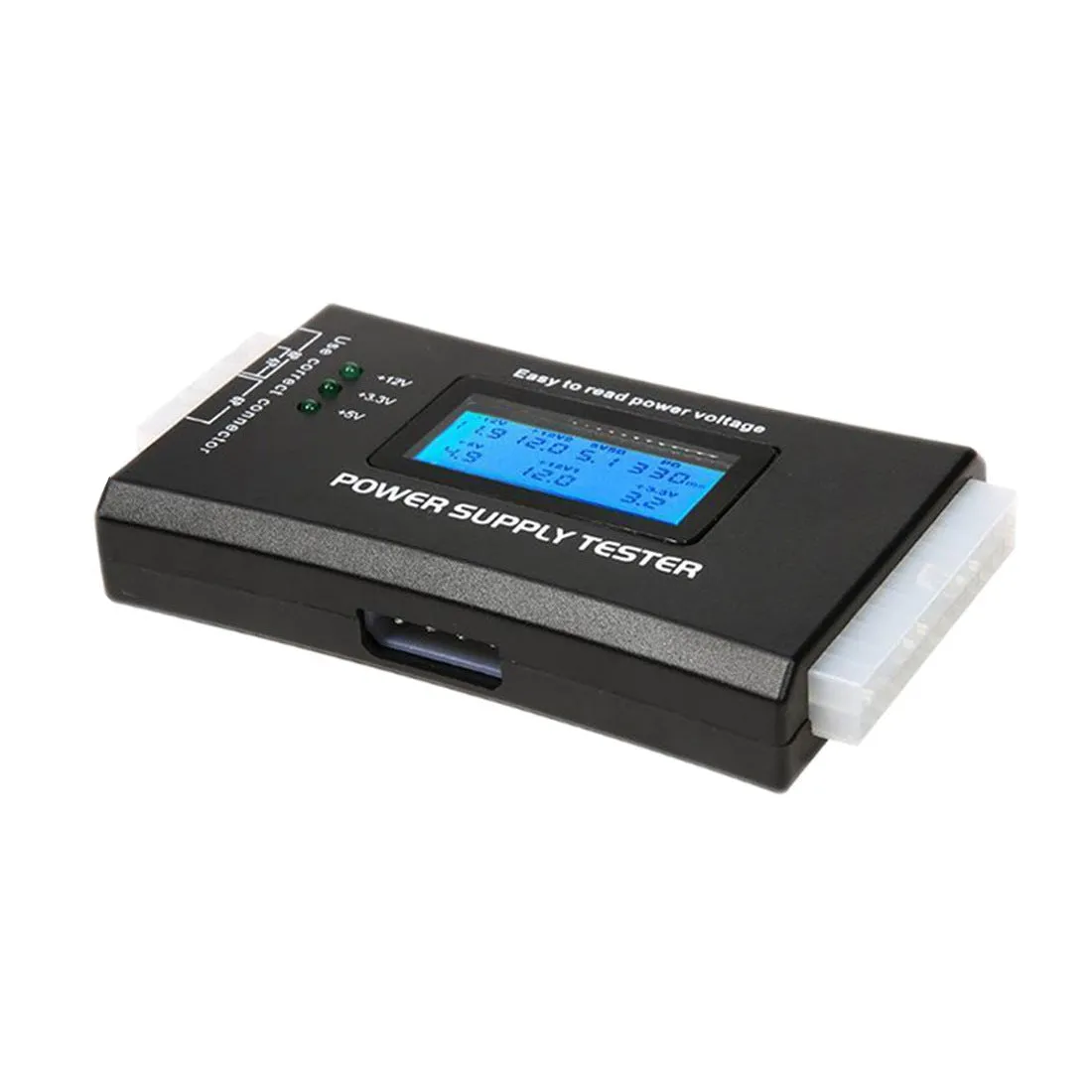

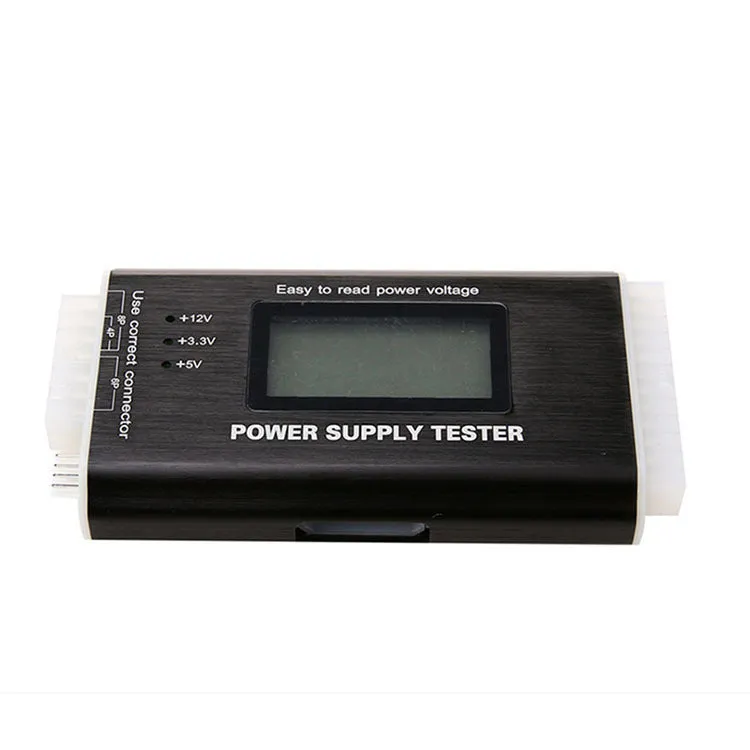

ATX Power Supply Tester 20 24 Pin SATA LCD Diagnose PSU

POWER SUPPLY TESTER

This power detection tool is compatible with ATX, BTX, ITX, LCD display of various voltages and PG values, test computer power without battery.

PROTECTIVE

LCD power supply tester can test the computer power supply and avoid damage to your expensive computer equipment.

SUITABLE FOR

The power supply tester is suitable for the computer enthusiast as well as professionals.

LCD FEATURE

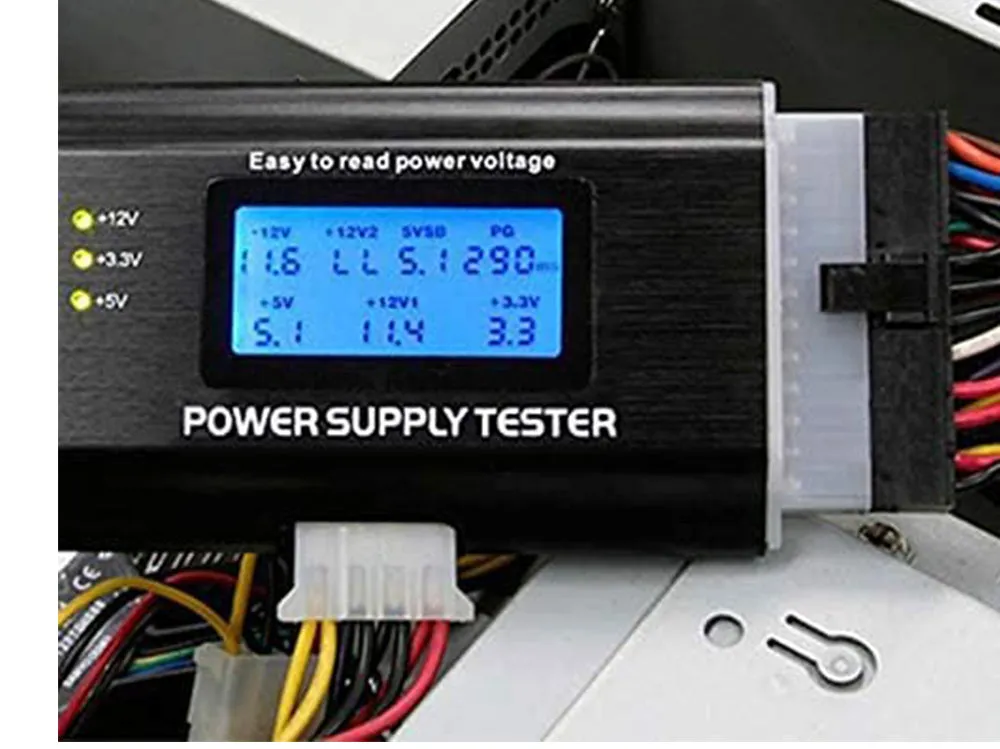

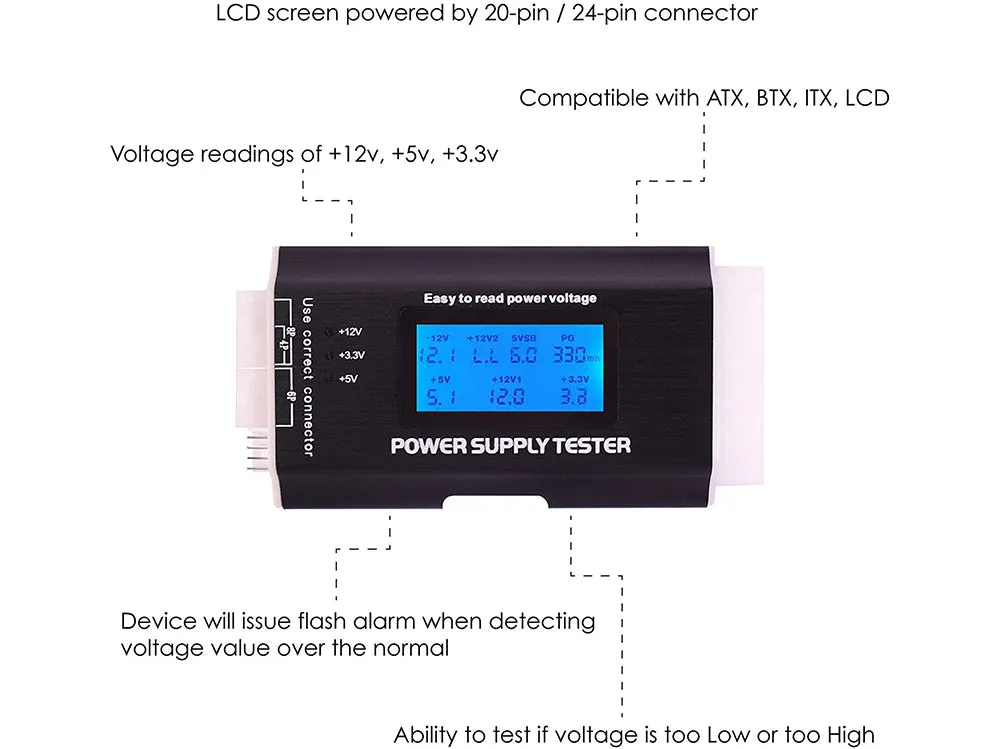

Outputted Voltages shows on the LCD Screen, which is easy to read (The LCD screen is powered by 20-pin / 24-pin connector). It comes with a protective film which can be removed if desired.

EASY TO USE

Power on the supply of power, will hear "DuDu" ring, if no flash then the power supply output voltage is normal. If a certain voltage signal was not detected, or the detected voltage value over the normal, the device will issue flash alarm.

Features:

ATX, BTX and ITX compliant
Easy to read digital LCD display
LCD's indicates the status of voltage
The SPS/ PC is suitable for the enthusiast as well as for a quick functional check in a professional setting
Voltage source: 20 / 24 pin (ATX - connector)
Voltage test: 12v, -12v, 5v, -5v, 3.3v, 5v stand by (SB) 12 v power good (PG)
Connectors: Floppy, HDD, CD ROM, SATA, 4pin (P4), 8 pin (Dual)-CPU), 6 pin (PCI-Express)

How to use:

Plug power supply 24PIN and P4, P6 or P8 into the corresponding jack of the power test suite.
Turn on the power of your device and the device will issue a "DuDu" sound, if there is no light flicker, then the power supply output voltage is normal.
If a certain voltage signal was not detected, or the detected voltage value is over the normal levels the device will issue a longer buzzer; if the corresponding voltage or PG flickers too, then the power is failed.
