SPECIFICATIONS

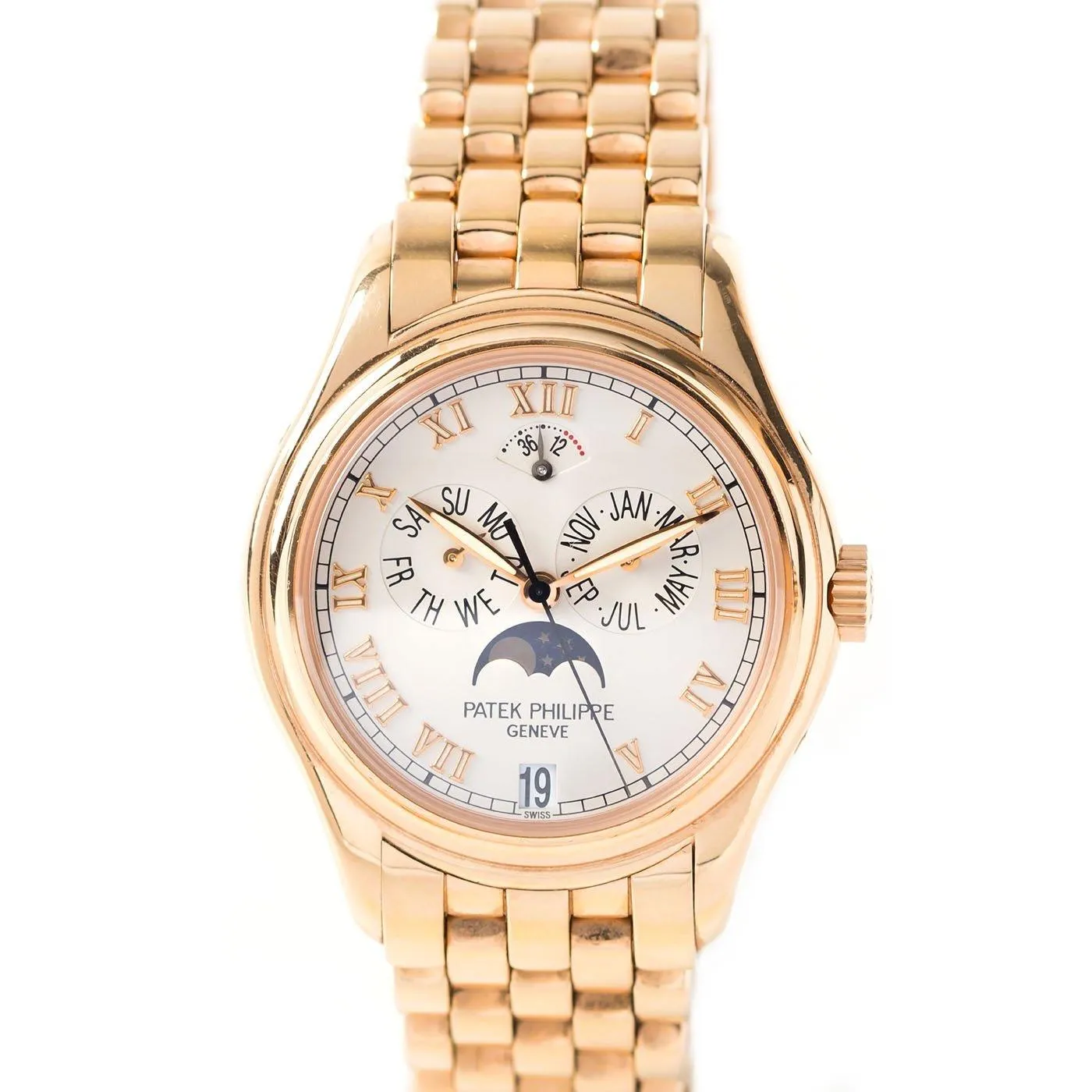

Brand: Patek Philippe
Model: Annual Calendar
Reference Number: 5036/1R
Movement: Automatic
Condition: Mint
Gender: Men’s
Time Period: 2001
Box: No
Papers: Yes

THE CALIBER

Caliber: 315/199
Jewels: 37

THE CASE

Case Material: 18K rose gold
Case Diameter: 36 mm
Thickness: 14 mm
Waterproof: 100 ft./ 30 m./ 3 ATM
Bezel Material: Fixed 18K rose gold
Glass: Sapphire Crystal
Caseback: Open
Dial: White
Dial Numerals: Applied 18K rose gold Roman numeral hour indices and black railway-track minute/second markers around the outer rim

THE BRACELET / STRAP

Bracelet Material: 18K rose gold
Buckle: Double folding clasp
Buckle Material: 18K rose gold and white gold

THE FUNCTIONS

Annual calendar, hours, minutes, center sweep seconds hand, sector for 48-hour power reserve indication at 12 o’clock, date window at 6 o’clock, day & month indicators at 9 and 3 o’clock, moon phase aperture at 6 o’clock

Concave bezel, fitted Patek Philippe polished 18K rose gold“drop links" bracelet and Patek Philippe double folding clasp.
Sapphire crystal display screw-down case back.
Downturned lugs
Luminous filled and 18K rose gold leaf-shaped hour/minute hands, blackened pencil-shaped center sweep seconds hand

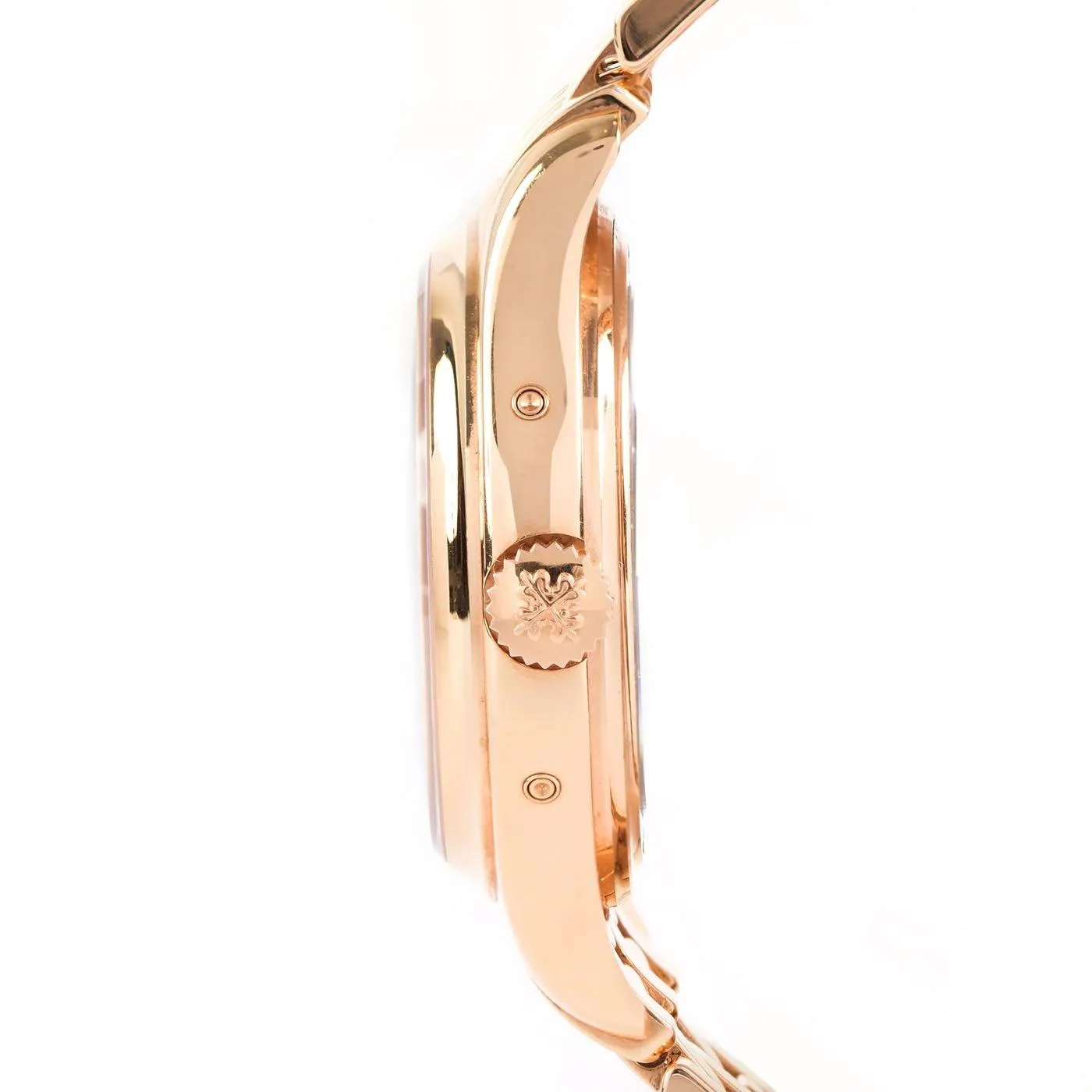

18K push/pull knurled crown with Calatrava cross engraving
Four correction push-pieces to adjust the calendar indications or the moon phase display: month correction at 2 o'clock, date correction at 4 o'clock, moon phase correction at 8 o'clock, and day of the week correction at 10 o'clock
This caliber 315/199 movement is rhodium-plated, with fausses côtes embellishment, and stamped with the Patek Philippe seal. It is constructed with a shock absorber device and a straight-line lever escapement. It includes a monometallic Gyromax balance, a free-sprung self-compensating flat balance spring, and an 18K gold rotor with the Patek Philippe Calatrava logo.
The mechanism oscillates at a frequency of 21,600 vph (3Hz)
Patek Philippe GENEVE signature at 6 o'clock
Incomplete (no box, with papers dated 2001)
This model was replaced by the model ref. 5146
