Product Details
＋

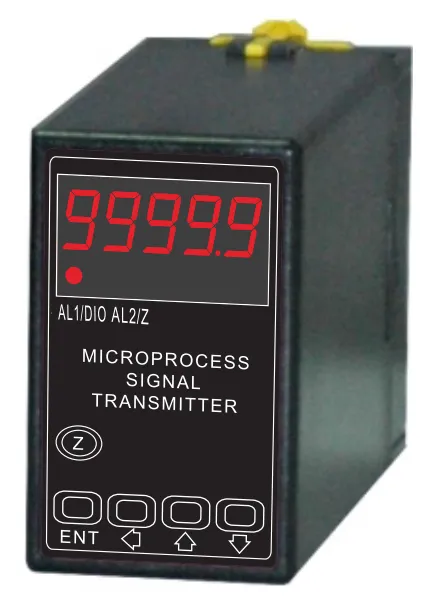

DC Voltage Transmitter with Alarm, 0-75mV DC Input, 100-240VAC/DC Aux, 2 x Relay Outputs
- Adjustable Zero and Span Setting
- 250mS Response Time
- PC 94 UL V0
- Input signals, Currents up to 10 Amp, and Voltages up to 600VAC or DC, can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type)
- Each unit needs just 50mm x 120mm depth DIN Rail cabinet space
Specification
| Part Number | GMTD-DVO(0-75mV)-A-RR |
| Control Output | 2 x SPST Alarms 3 Amp |
| Input | 0-75mV DC |
| Alarm Type | 1 x SPDT CO Relay 3 Amp |
| Over Range | x 1.2 |
| Operating Temperature | 0 - 60°C |
| Load Voltage | 100-240VAC/DC |
| Span Adjustment Range | /-10% |
| Zero Adjustment Range | /-5% |
| Termination Style | Screw |
| Mounting Style | DIN Rail Mount |
| Case Material | PC - UL 94 V0 |
| Weight | 170g |
| Factory Pack Qty | 1 |
