Product Details
＋
The 40 Series rim exit device is super-heavy-duty panic and fire exit hardware for use on all types of narrow stile single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.
Features:

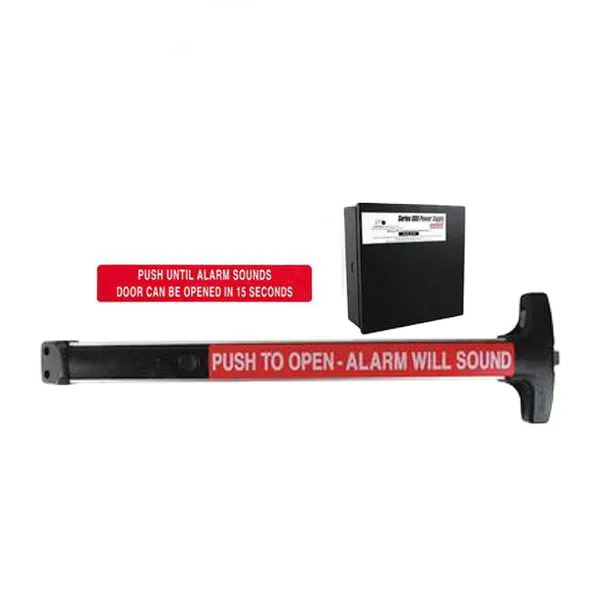

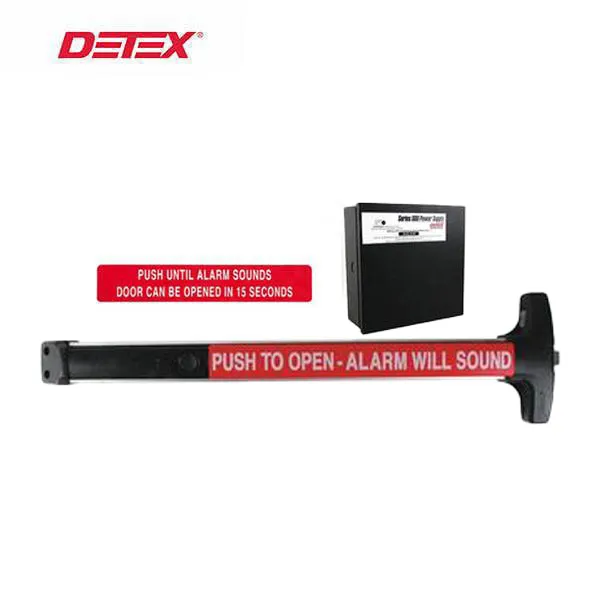

- Detex V40 EE, Delayed Egress Rim Exit Device
- Fire alarm input can be connected at power supply
- Fire Rated
- Non-handed, field sizeable
- 36 – Fits 36″ Door Width
- Powered by a 24VDC filtered and regulated power supply
- 9V battery provides alarm function only in case of power failure
- Fasteners: Machine and Self-Drilling Screws
- Tamper resistant housing
- Angled end cap deflects damage away from device
- Visual and audible arming indicators
- 100 Decibel alarm
- 10 Year Mechanical/3 Year Electrical – Limited Manufacturer’s Warranty
Specifications
| Length | 32-7/8" |
| Door Width | 36" |
| Door Thickness | 1-3/4" - 2-1/4" |
| Single Door Stile | Fits 3-1/2” minimum stile doors with 99 surface strike |
| Power | Constant 24VDC of filtered and regulated voltage at a rated load of 1A, 9V battery provides alarm function only in case of power failure |
| Dogging | Less Dogging |
| Bolt | Stainless steel, 3/4" deadlocking Pullman-type latch bolt |
| Alarm | 100 Decibels |
| arming | 15 second arming. Silent arming (3 chirps when arming) |
| Finish | 711 (Black) |
| Fire Rating | 3 Hour UL Listed |
| Warranty | 10 Year Mechanical 3 Year Electrical Limited Manufacturer's Warranty |
