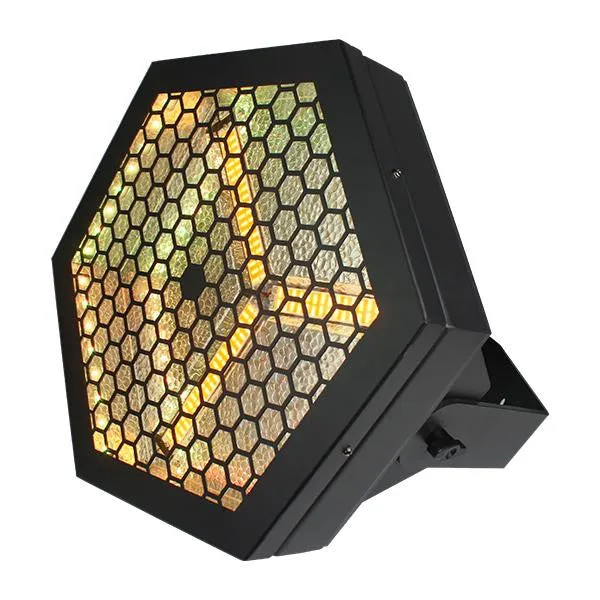

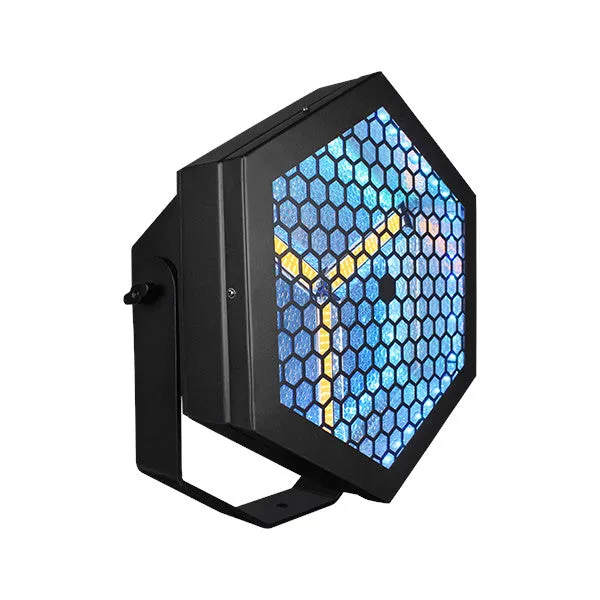

The Lux Capacitor™ from Blizzard is a 2200k warm white retro blinder with RGB background color effects. It offers RGB color mixing for the background effects plus independent control for each warm white LED and an ultra-smooth overall master dimmer. Other features include auto and sound active modes, 32-bit dimming, and an LCD control panel.
Features
- 3x 60W warm white LEDs (2200K)
- 48x 0.5W RGB LEDs (background effects)
- Individual control of warm white LEDs
- 30 speed controllable built-in programs
- Sound active mode available via standalone or DMX
- User-selectable 32-bit dimming curves
- Variable electronic dimming
- 1-25Hz strobe effects
- Flicker-free LEDs

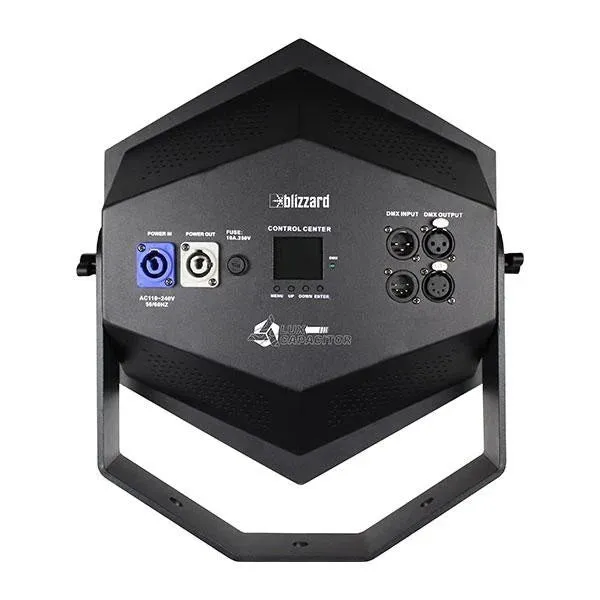

- 3/5-pin DMX input/output connections
- PowerCON® compatible power input/output connections
Specifications
- Optical
- Type: Warm White Blinder RGB Background Effects
- Light source: 3x 60W warm white LEDs (2200K)
- Background source: 48* 0.5W RGB LEDs
- 2.5m: 436 Lux
- 5m: 121 Lux
- Flicker-free LEDs: Yes
- Control
- Protocol: USITT DMX-512
- DMX channels: 6/8/12-channel modes
- Display: LCD with easy-to-use 4-button control panel
- Operating modes: DMX512, primary/secondary, auto, sound active
- Power & Current
- 110-240VAC, 47-63 Hz
- Power Consumption: 274W, 2.49A, PF: .99
- AC power In/Out connectors: PowerCON™ compatible
- General
- Dimensions: 12.6” x 6.5” x 16” (320 x 164 x 405 mm)
- Weight: 11.7 lbs (5.3 kg)
- Warranty: 2-year limited warranty
