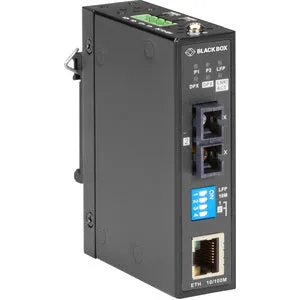

The Black Box LMC280 Series Fast Ethernet Industrial Media Converter - Single-Mode SC is the perfect solution for extending your network capabilities while leveraging the advantages of fiber technology. This state-of-the-art media converter is meticulously crafted to convert 10/100Base-T(X) signals to 100BaseFX, providing organizations with a cost-effective way to enhance their existing infrastructure. Its robust design and high-performance specifications make it suited for even the most demanding environments.

• Cost-Effective Network Extension: Easily integrate fiber connectivity into your existing network infrastructure without high investment costs. Transition from copper to fiber with ease, without sacrificing performance.
• Durable and Reliable: Designed with a rigid IP-30 housing, this media converter is built to withstand harsh conditions, ensuring longevity in challenging work environments. It operates effectively in a wide temperature range of -40° to 158° F.
• Simple Installation: With support for auto-negotiation and auto-MDI/MDIX, the LMC280 simplifies the installation process, eliminating the need for crossover cables and minimizing setup errors.
• Link Fault Pass-Through Technology: This innovative feature maximizes network uptime by automatically shutting down the active link upon detecting a fault on the opposite side, allowing your application software time to rectify the issue.
• Flexible Power Options: The LMC280 series supports dual power inputs with an extensive voltage range of 12 to 48 VDC. This flexibility allows for various installation scenarios, whether on a DIN rail or wall-mounted.

Technical Details of the Product

• Conversion Type: 10/100Base-T(X) to 100BaseFX
• Housing: Rigid IP-30
• Operating Temperature: -40° to 158° F
• Power Input: Dual power inputs (12 to 48 VDC)
• Link Fault Pass-Through Support: Yes
• Mounting Options: DIN rail or wall mount

How to Install

Installing the Black Box LMC280 Series Fast Ethernet Industrial Media Converter is a straightforward process. Follow these simple steps for a successful setup:

1. Choose your installation location (DIN rail or wall mount).
2. Connect the 10/100Base-T(X) cable to the Ethernet port of the media converter.
3. Connect the fiber optic cable to the SC fiber port.
4. Connect the power supply to one of the power inputs, ensuring it is within the accepted voltage range (12-48 VDC).
5. Power on the device and observe the LED indicators to ensure proper functioning.

Frequently Asked Questions

• What is the maximum distance I can cover with this media converter? The Black Box LMC280 series can significantly extend network distances; however, the exact distance may vary based on the type of fiber optic cable you are using.
• Can I use this device outdoors? This media converter is designed for industrial environments and should be used in sheltered areas to protect it from extreme weather conditions.
• Does it support both single-mode and multi-mode fiber? The LMC280 Series is specifically designed for single-mode fiber. Please refer to compatible products or specifications for multi-mode applications.
• What types of power supplies are compatible with this device? The converter accepts power supplies within a range of 12 to 48 VDC for enhanced installation flexibility.
• Is there a warranty included with the product? Yes, Black Box typically provides a warranty. Please check the specific product documentation or retailer for details.
