Product Details
＋

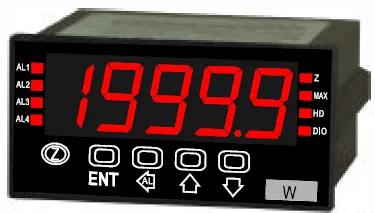

Fastron Electronics AM5H-A-DV4-AR2AN, 96x48mm Digital Voltmeter 0-10VDC Input with 4-20mA Transmission Output, 100-240VAC/DC Aux, 5 Digit
- Adjustable Zero and Span Setting
- Adjustable Display Scaling
- Large 5 Digit 20.3mm (8 Inch) LED Display
- 250mS Response Time
- PC 94 UL V0
- Input signals can be converted to insulated 0-10V output (for voltage output type)
- Each unit needs just 96 x 48mm Panel Space
- 90mm Depth
Specification
| Fastron Electronics Part Number | AM5H-A-DV4-AR2AN |
| Conditioner Output | None |
| Input | 0 - 10VDC |
| Transmission Output | 4-20mA |
| Relay Output | 2 x 7 Amp 277VAC |
| Over Range | x 1.5 |
| Operating Temperature | 0 - 60°C |
| Supply Voltage | 100-240VAC/DC |
| Span Adjustment Range | /-10% |
| Zero Adjustment Range | /-5% |
| Display Type | 5 Digit RED LED |
| Termination Style | Screw |
| Mounting Style | 96 x 48mm Panel Mount |
| Case Material | PC - UL 94 V0 |
| Weight | 320g |
| Factory Pack Qty | 1 |
