Description

High-airflow Fan System: Specifically designed to cool AV equipment rooms, closets, and larger enclosures. This fan system is characterized by a programmable thermostat controller enabled with automated speed control, alarm warnings, and backup memory.

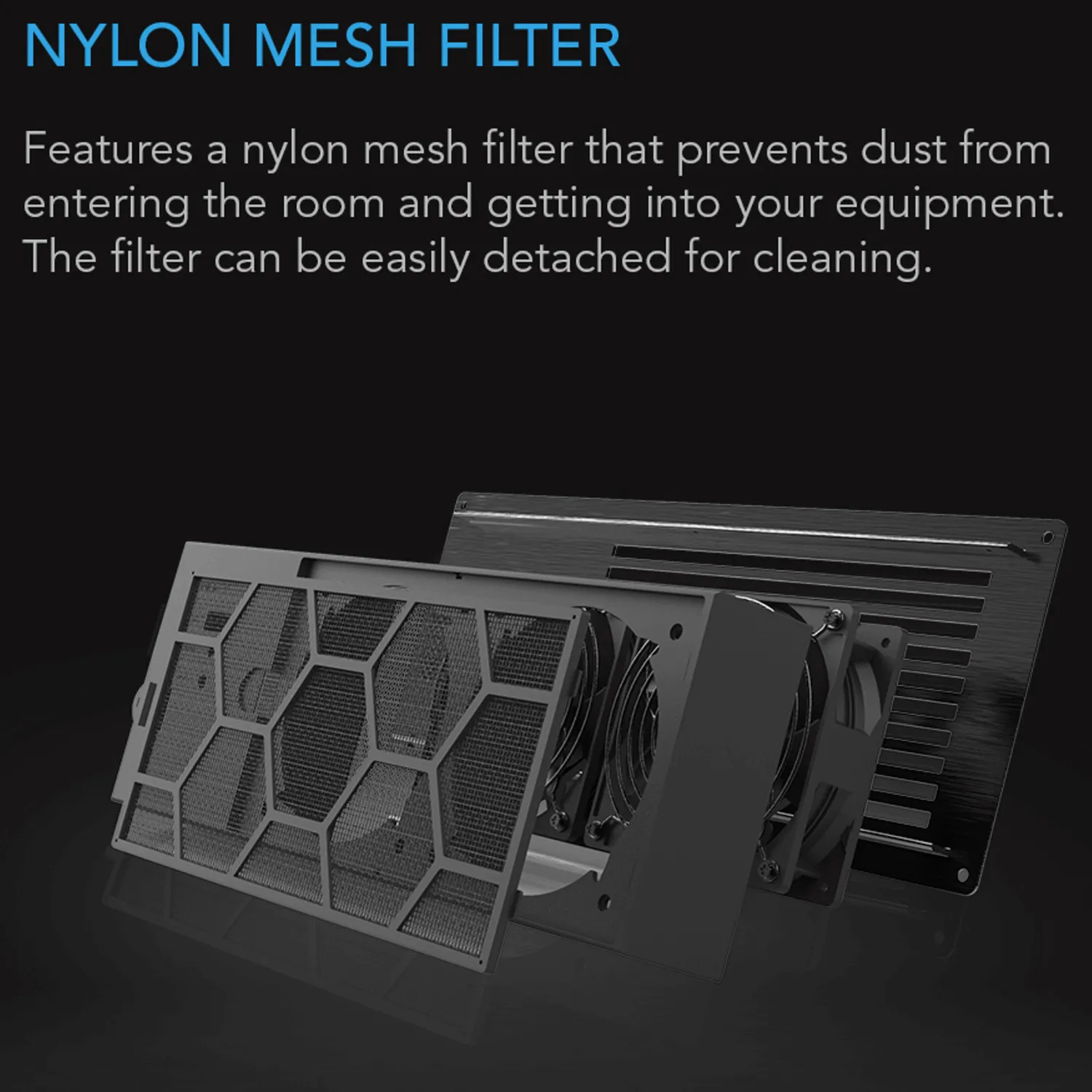

Built Quality: The unit boasts a premium anodized aluminum construction. The detailed CNC-machined finish adds to the professional appearance. Plus, it features a detachable nylon-mesh filter that prevents dust from entering the room and damaging equipment.

Specifications and Color: The unit is white and designed for intake. The dimensions are 16.5 x 6.5 x 2.3 inches. High-performing unit providing airflow up to 200 CFM, while maintaining a low noise level of 26 Dba. The unit employs dual ball bearings.

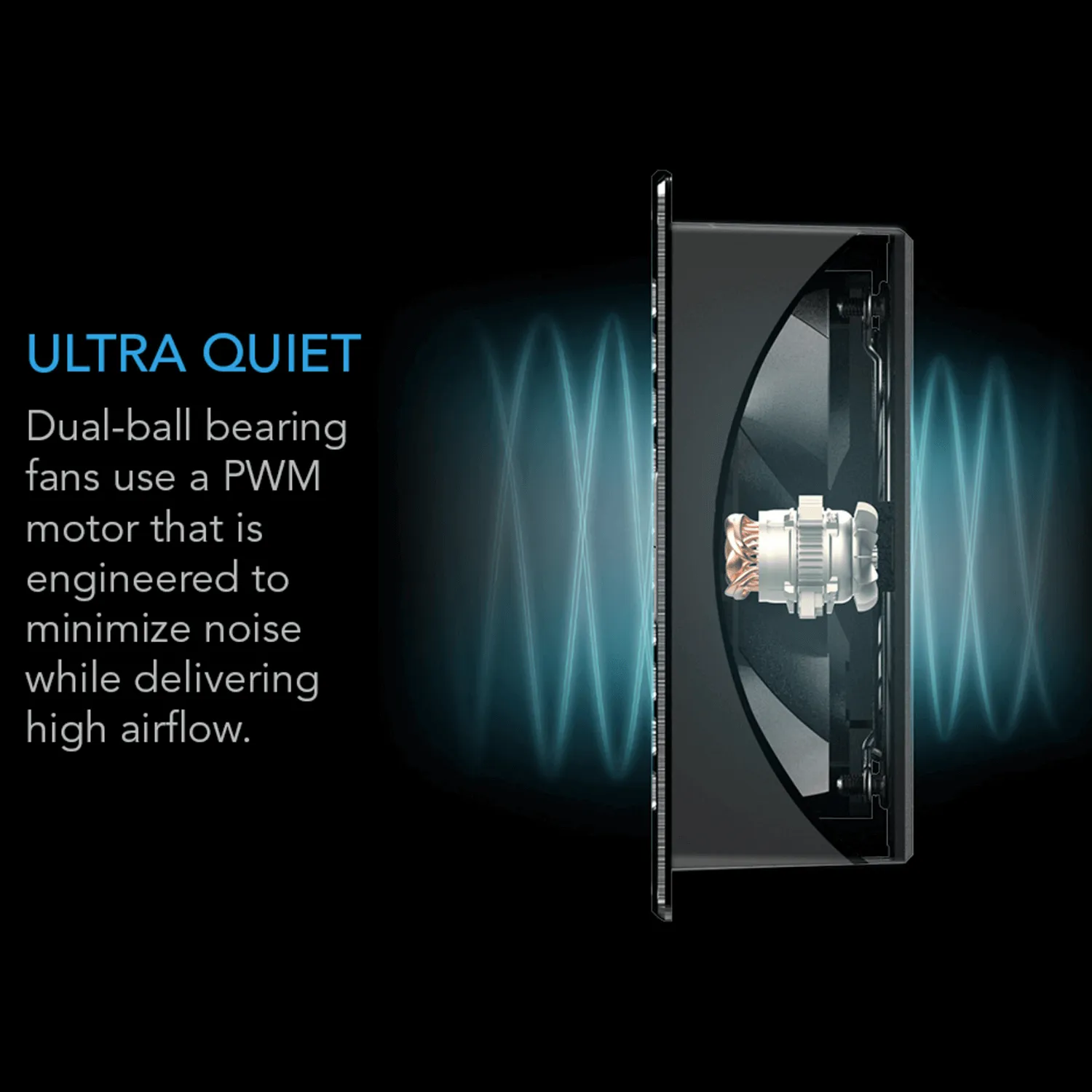

Product Description: The system is designed to provide intelligent cooling to AV closets, rooms, and larger enclosures using thermal control and high airflow fans. The unit features a nylon-mesh filter that prevents dust particles from entering the room and damaging your equipment. This filter is detachable for easy cleaning. The unit also features long-life dual ball bearings, rated at 67,000 hours, allowing for horizontal or vertical mounting.

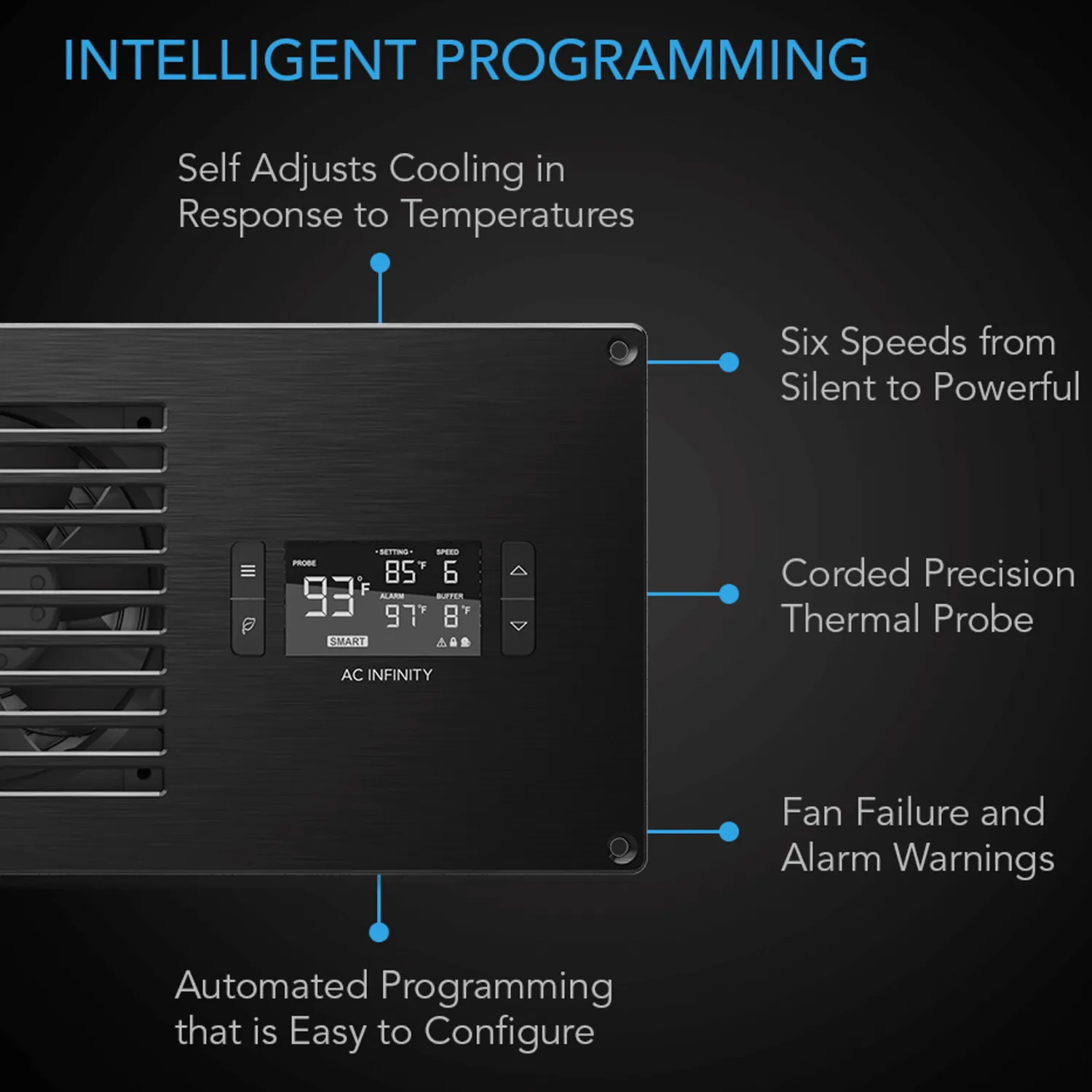

Intelligent Cooling: This fan system's programming includes an easy-to-use thermostat and a SMART mode that automatically adjusts the fan's speed in response to varying temperatures. It also features alarm alerts, fan failure triggers, power savings setting, display lock, and backup memory. The system offers six fan speeds with three screen brightness settings.

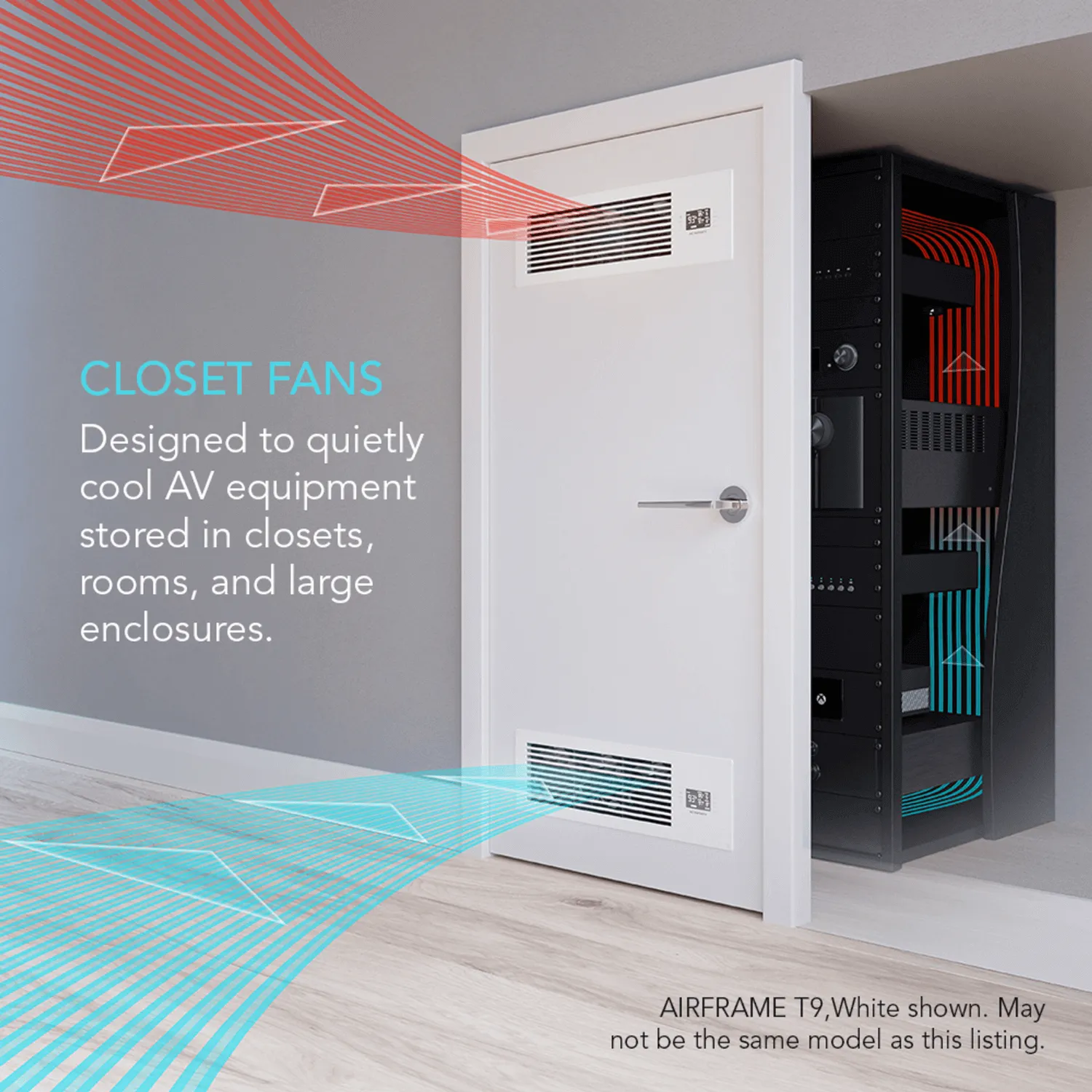

Applications: This high airflow fan system can be easily mounted on the door or walls of equipment closets, rooms, and larger-sized enclosures making it ideal for small AV closets holding server, network, IT and equipment racks. The system is effective due to its high airflow rating of 200 CFM.

Specifications

Manufacturer: AC Infinity Inc.

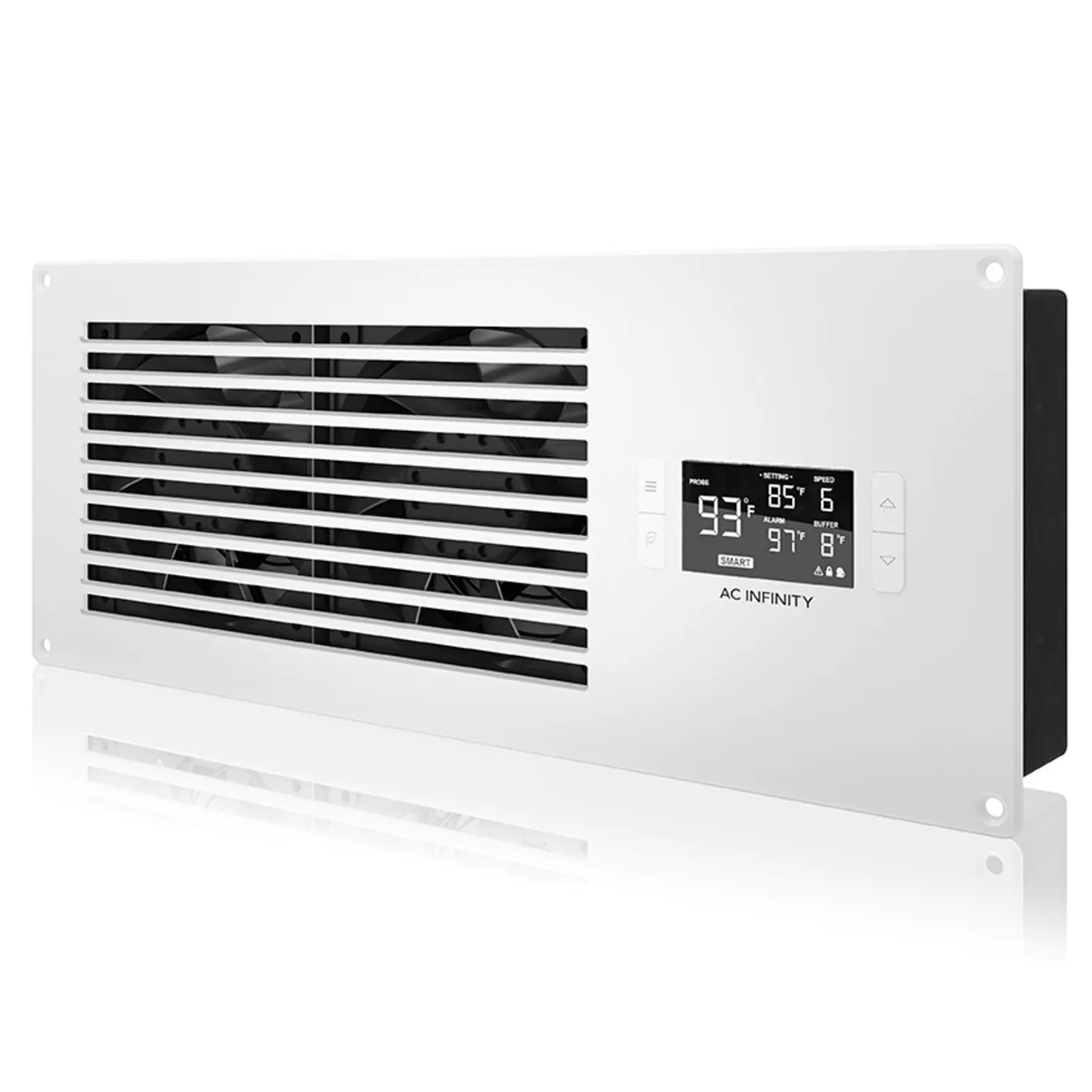

Product Name: AIRFRAME T7-N White, Intake

Product Model: AC-AFT7-WN

UPC Code: 819137020184

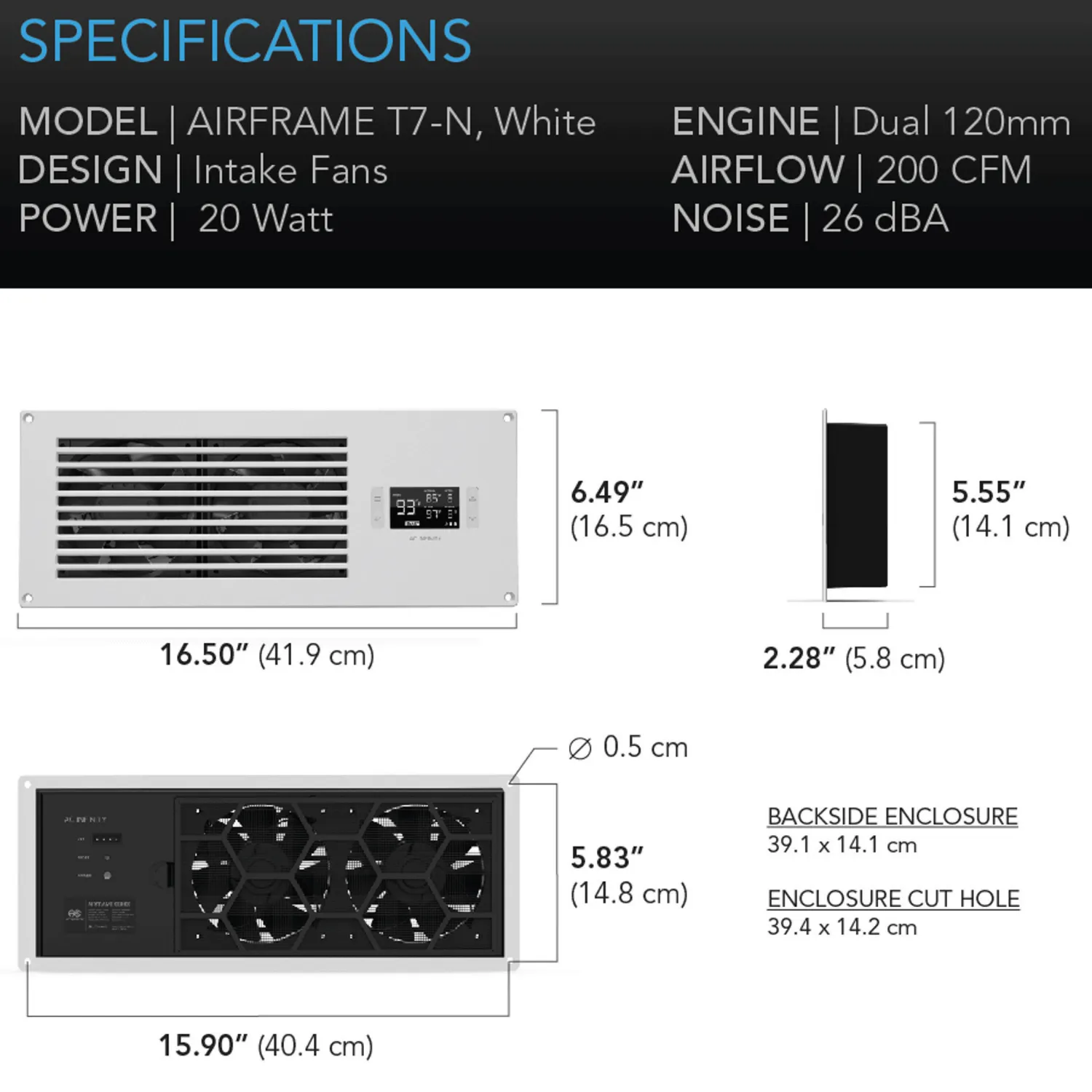

Product and Mounting Dimensions - Fan Unit

Total Dimensions: 16.5 x 6.49 x 2.28 inches (41.9 x 16.5 x 5.8 cm)

Backside Enclosure Dimensions: 15.39 x 5.55 inches (39.1 x 14.1 cm)

Required Mounting Hole: 15.51 x 5.59 inches (39.4 x 14.2 cm)

Hole to Hole Distance: 15.90 x 5.83 inches (40.4 x 14.8 cm)

Screw Hole Size: Ø 0.197 inches (Ø 0.5 cm)

Cord Length: 72 inches (6 feet)

Mounting Template

Installation Manual PDF

Product Performance and Technical Specs

Design: White

Type: Intake

Total Airflow: 200 CFM

Total Noise Level: 26 dBA

Static Pressure: 5.5 mm-H2O

Operating Voltage: 12V DC

Power Consumption: 20 W

Current Usage: 1.6 A

Wall Adapter Input: 100 to 240V AC

Operating Humidity Range: 35 to 85% RH

Operating Temperature Range: 0 to 158°F

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours

Fan Quality Approvals: CE, RoHS

Data Sheets

Download the product manual:

Download the Mounting Template:

Download the CE Certification:

Download the RoHS Certification:
