Description

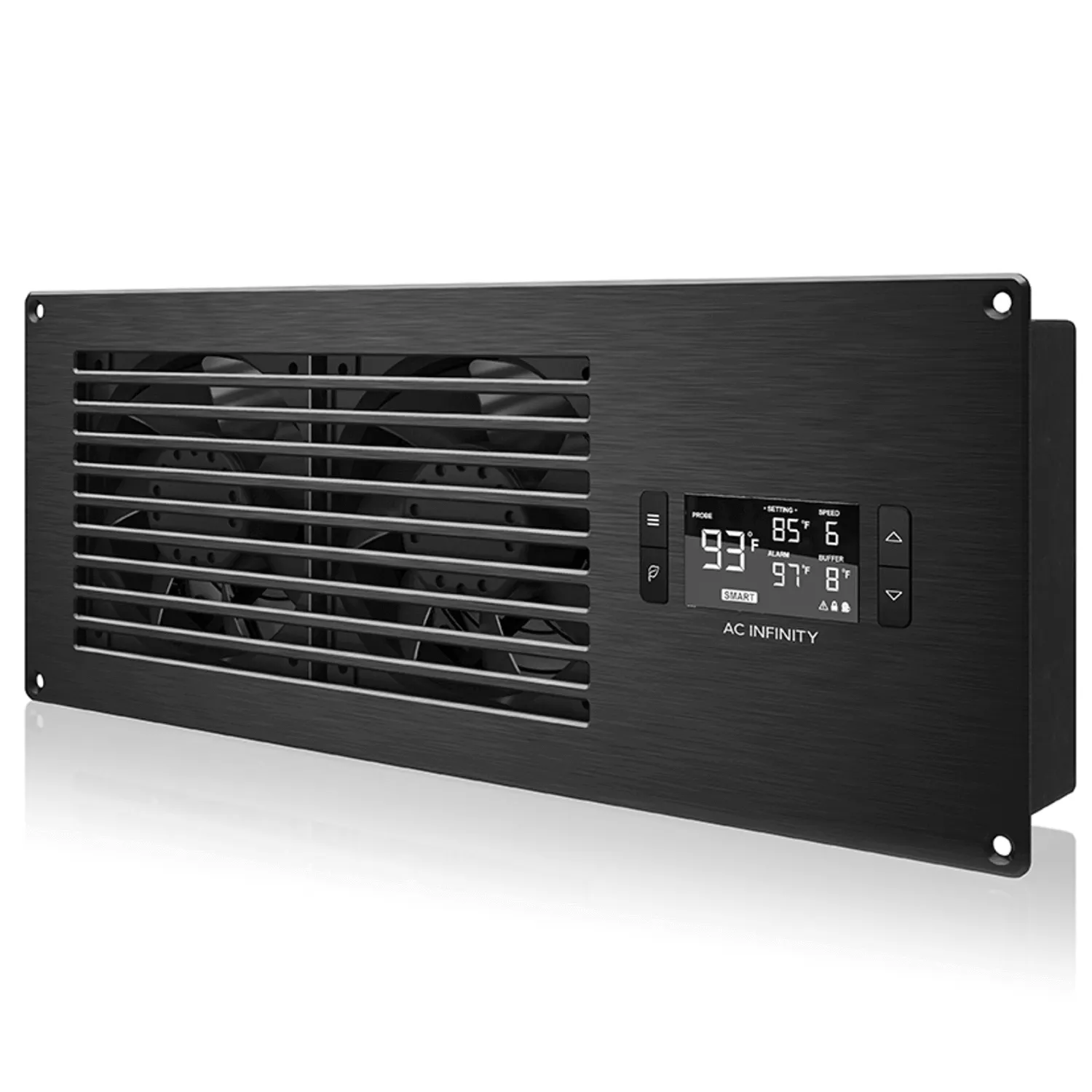

High-Airflow Fan System: This system, designed for cooling AV equipment rooms, closets, and larger enclosures, offers high airflow. It features a programmable thermostat controller with automated speed control, alarm warnings, and backup memory. Color: Black, Dimensions: 16.5 x 6.5 x 2.3 inches, Airflow: 200 CFM, Noise: 26 Dba, Bearings: Dual Ball.

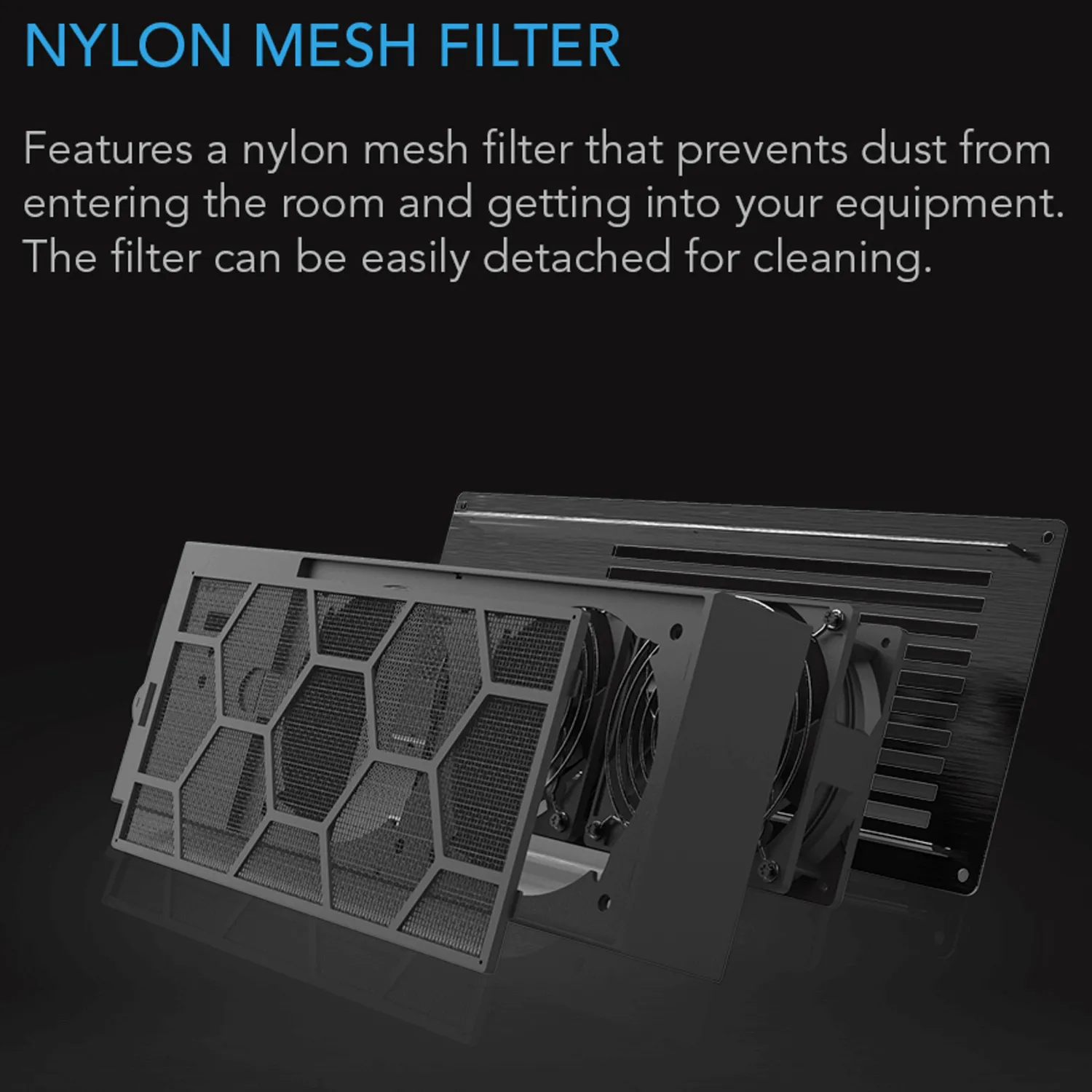

Premium Construction: The fan systems in the Airframe series boast premium anodized aluminum construction and CNC-machined detailing, lending them a professional appearance. It also comes with a detachable nylon-mesh filter to prevent dust particles from entering the room and your equipment.

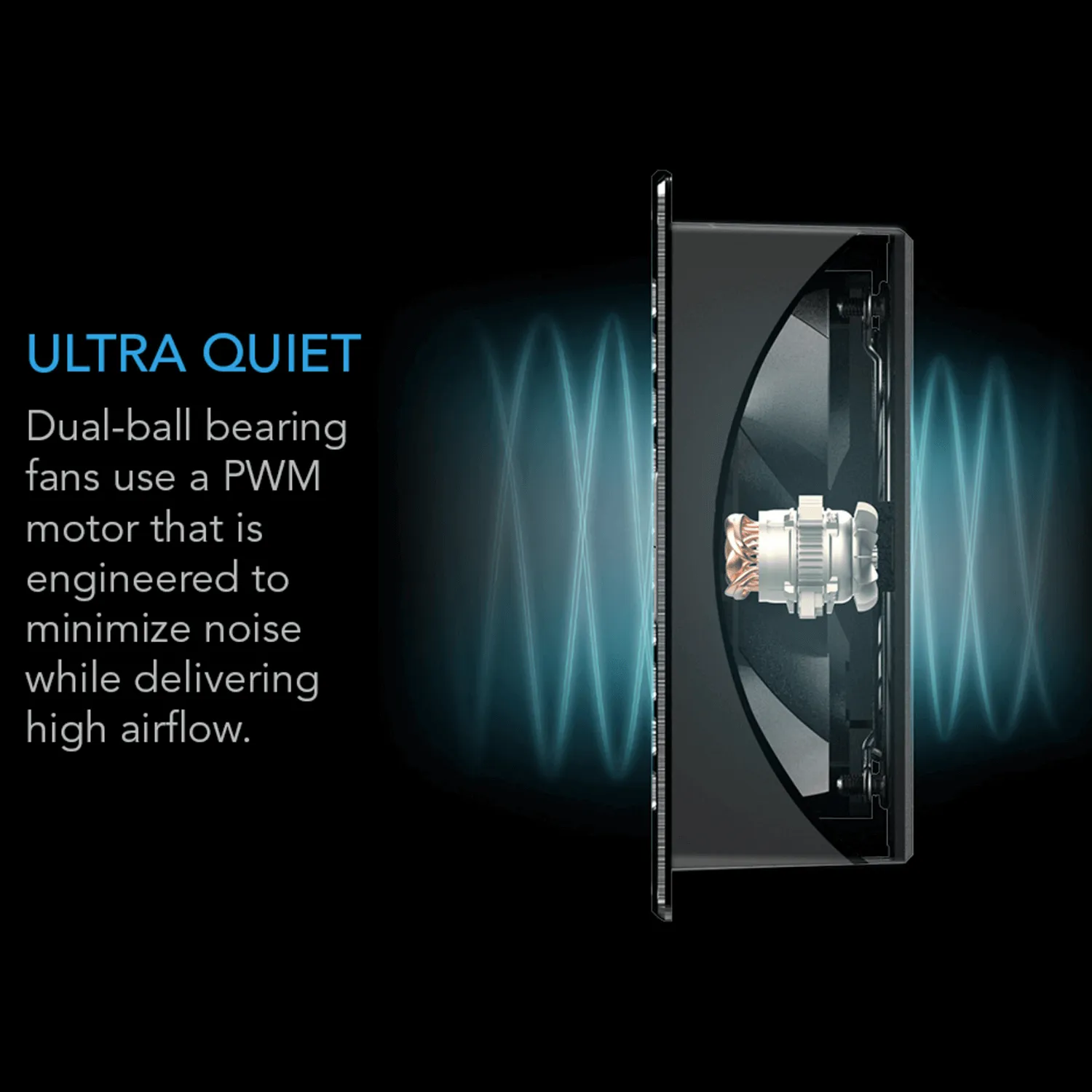

Product Description: The AIRFRAME series is designed for intelligent cooling of AV closets, rooms, and large enclosures. Each unit includes a nylon-mesh filter to prevent dust from intruding into your equipment. With a design focused on maximizing airflow while minimizing noise, these fans feature long-life dual ball bearings rated at 67,000 hours. This allows for both horizontal and vertical mounting of the fan system.

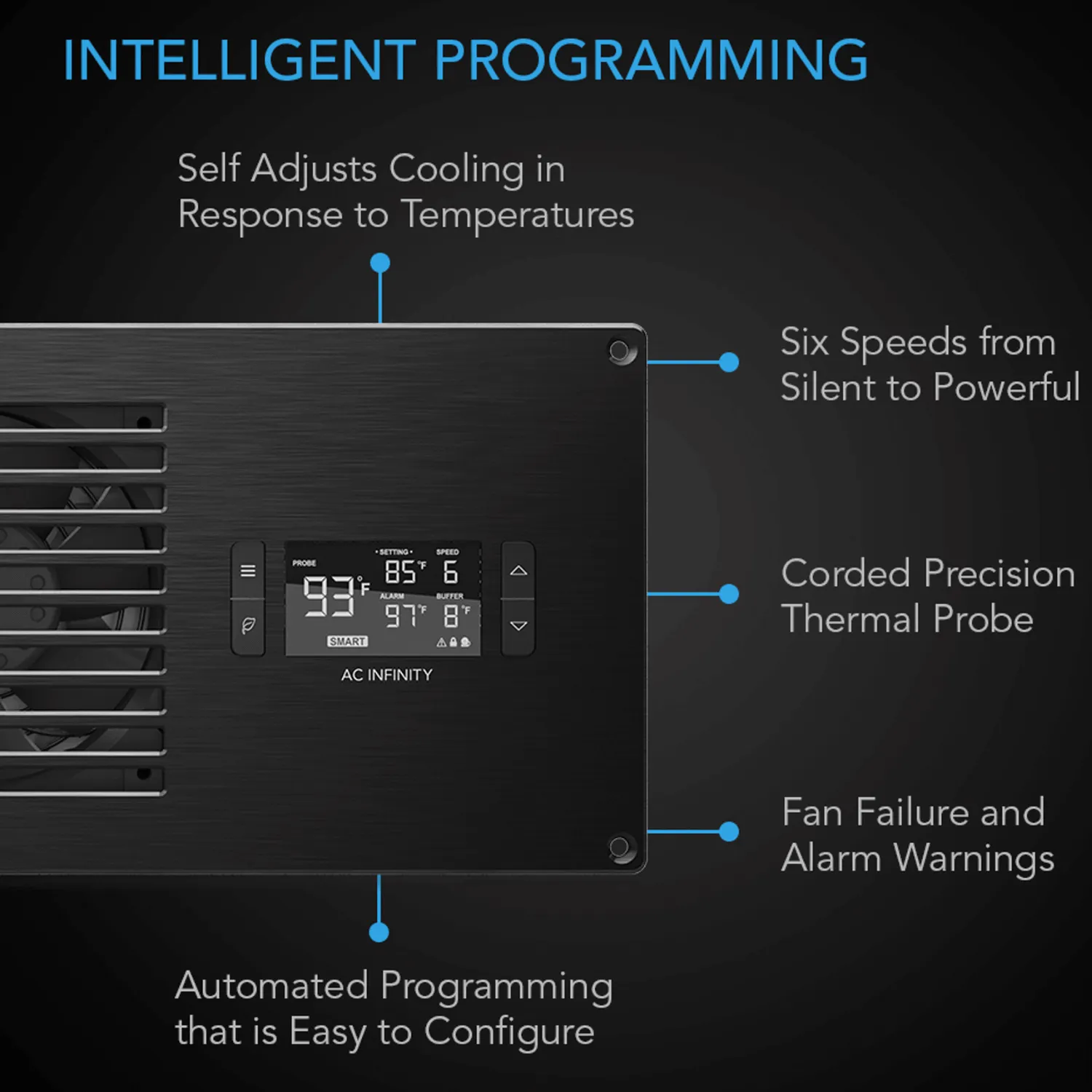

Intelligent Cooling: The system offers a simple-to-use thermostat and a SMART mode that auto-adjusts the fan’s speed based on different temperatures. Additional features include alarm alerts, fan failure triggers, a power savings setting, display lock, and backup memory. Six fan speeds and three screen brightness settings are available as well.

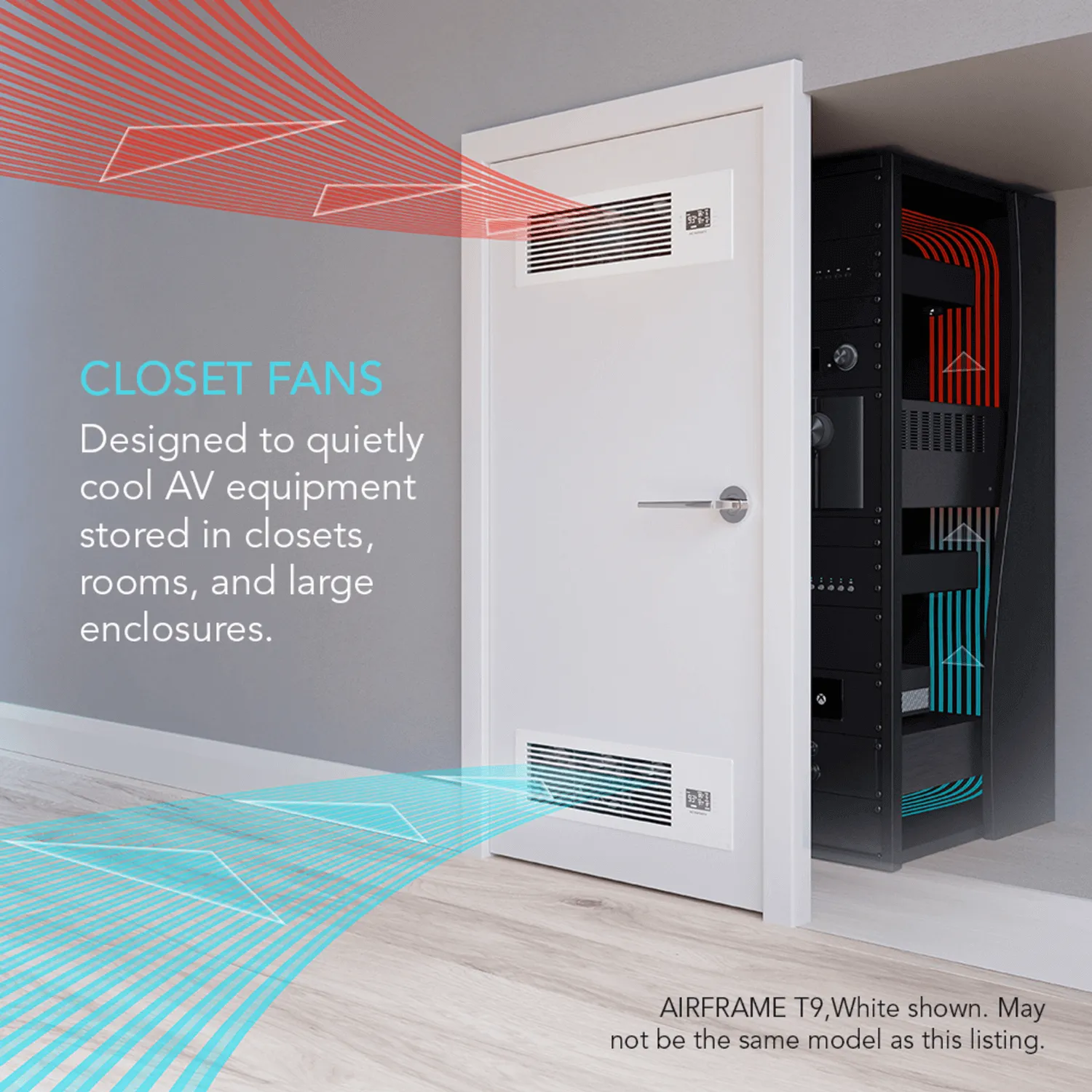

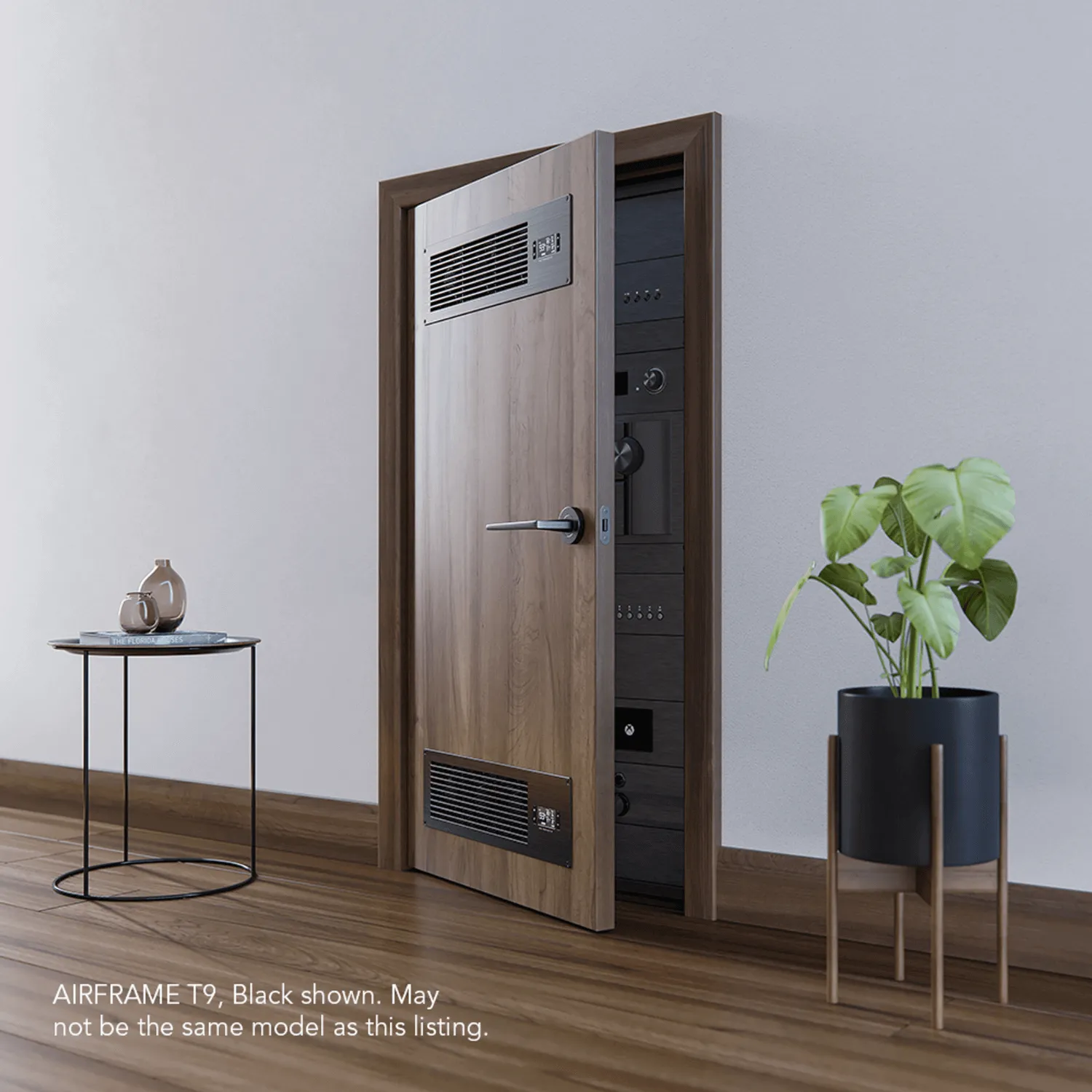

Applications: This high-airflow fan system is suitable for installation on the doors or walls of equipment closets, rooms, and larger enclosures. With its 200 CFM airflow rating, it provides adequate cooling to small AV closets that host servers, networks, IT and equipment racks.

Specifications

Manufacturer: AC Infinity Inc.

Product Name: AIRFRAME T7-N Black, Intake

Product Model: AC-AFT7-BN

UPC Code: 819137020177

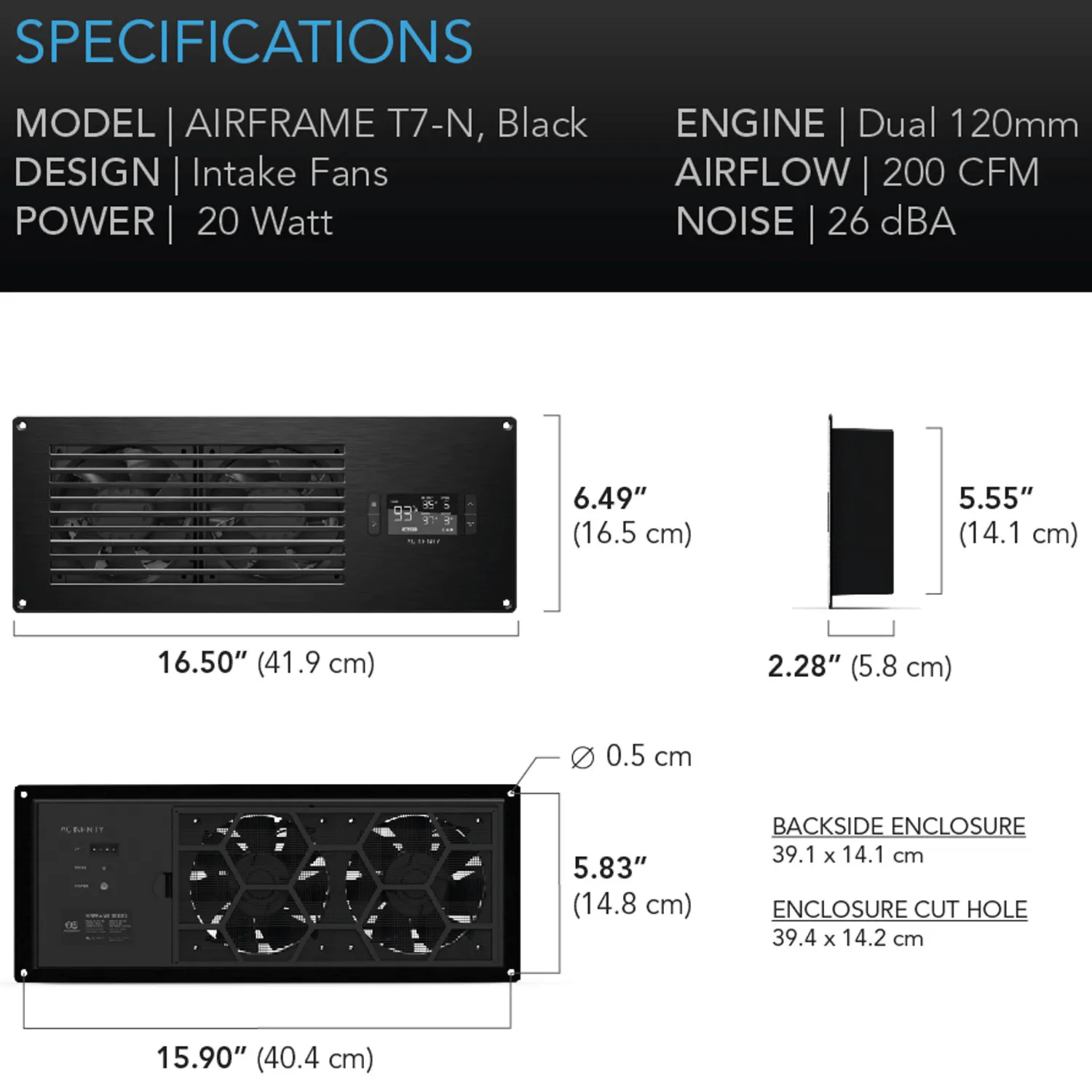

Product and Mounting Dimensions - Fan Unit

Total Dimensions: 16.5 x 6.49 x 2.28 inches (41.9 x 16.5 x 5.8 cm)

Backside Enclosure Dimensions: 15.39 x 5.55 inches (39.1 x 14.1 cm)

Required Mounting Hole: 15.51 x 5.59 inches (39.4 x 14.2 cm)

Hole to Hole Distance: 15.90 x 5.83 inches (40.4 x 14.8 cm)

Screw Hole Size: Ø 0.197 inches (Ø 0.5 cm)

Cord Length: 72 inches (6 feet)

Mounting Template

Installation Manual PDF

Product Performance and Technical Specs

Design: Black

Design: Intake

Total Airflow: 200 CFM

Total Noise: 26 dBA

Static Pressure: 5.5 mm-H2O

Operating Voltage: 12V DC

Power: 20 W

Current: 1.6 A

Wall Adapter Input: 100 to 240V AC

Operating Humidity: 35 to 85% RH

Operating Temperature: 0 to 158°F

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours

Fan Quality Approvals: CE, RoHS

Data Sheets

Download the product manual:

Download the Mounting Template:

Download the CE Certification:

Download the RoHS Certification:
