Description

High-Airflow Fan System: Designed perfectly for cooling AV equipment rooms, closets, and larger enclosures.

Programmable Thermostat Controller: Comes with automated speed control, alarm warnings, and backup memory.

Premium Materials: This product showcases a professional appearance with premium anodized aluminum construction and CNC-machined detailing.

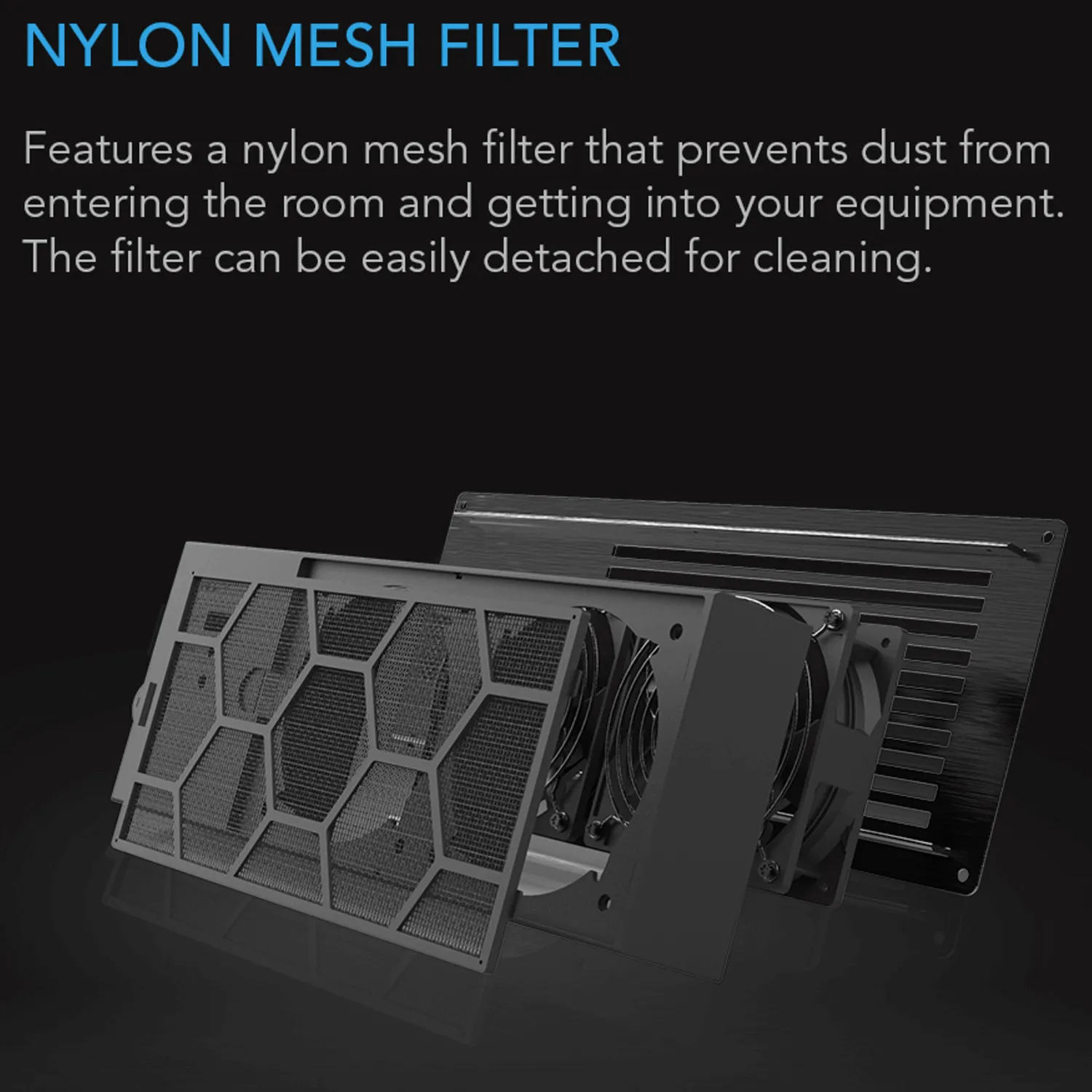

Detachable Nylon-Mesh Filter: The filter prevents dust from entering the room and equipment. It's also detachable for easy cleaning.

Specifications: Color: Black. Design: Exhaust. Dimensions: 16.5 x 6.5 x 2.3 inches. Airflow: 200 Cubic Feet per Minute (CFM). Noise: 26 decibels. Bearings: Dual Ball.

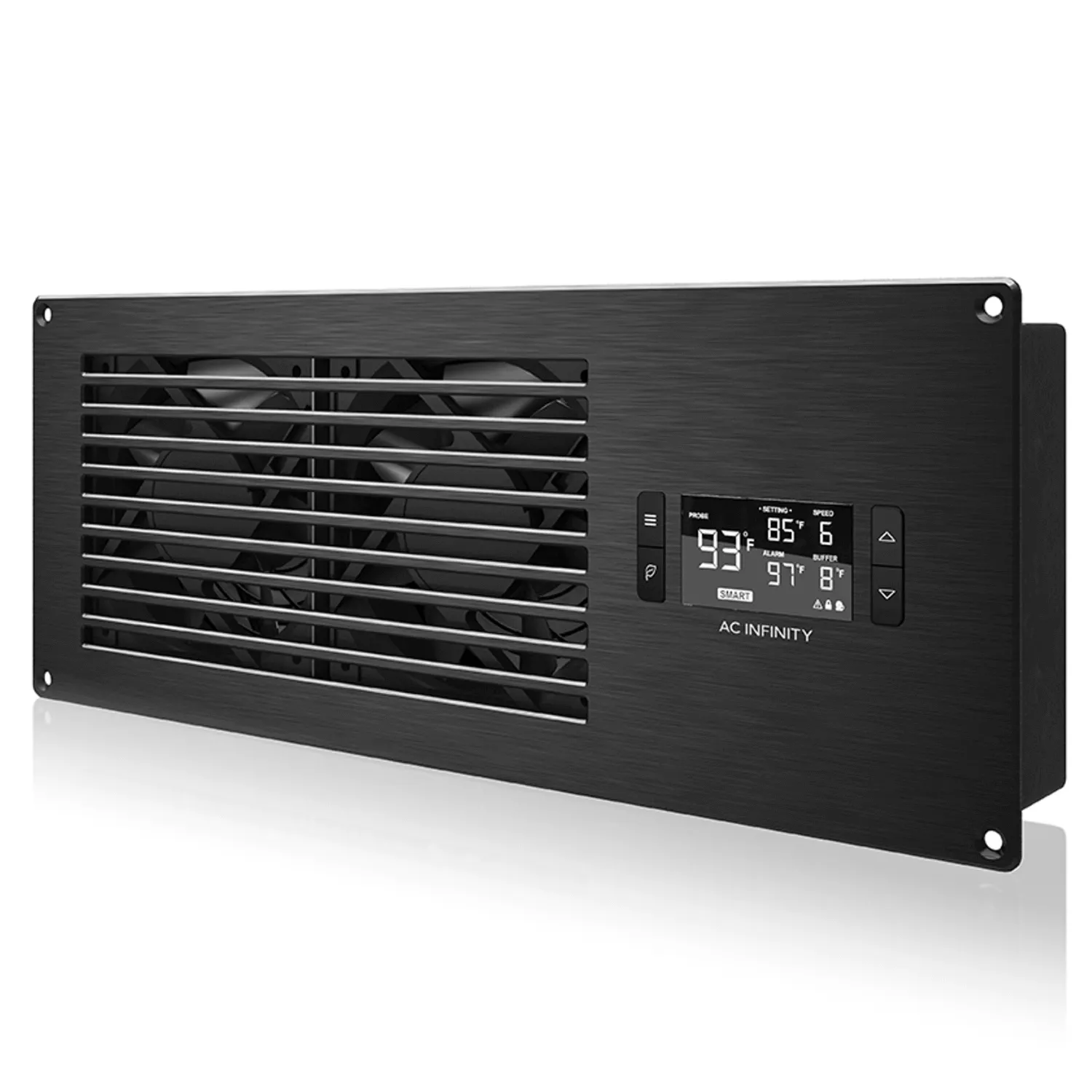

Product Description: The AIRFRAME series is intelligently designed for cooling AV rooms, holding various audio-video components and equipment. You can mount the fan system horizontally or vertically. The frame, constructed from premium aluminum alloy, is anodized, brushed, and machined for a professional and detailed appearance. The package includes all necessary hardware for easy mounting onto a door or wall and for powering through an outlet.

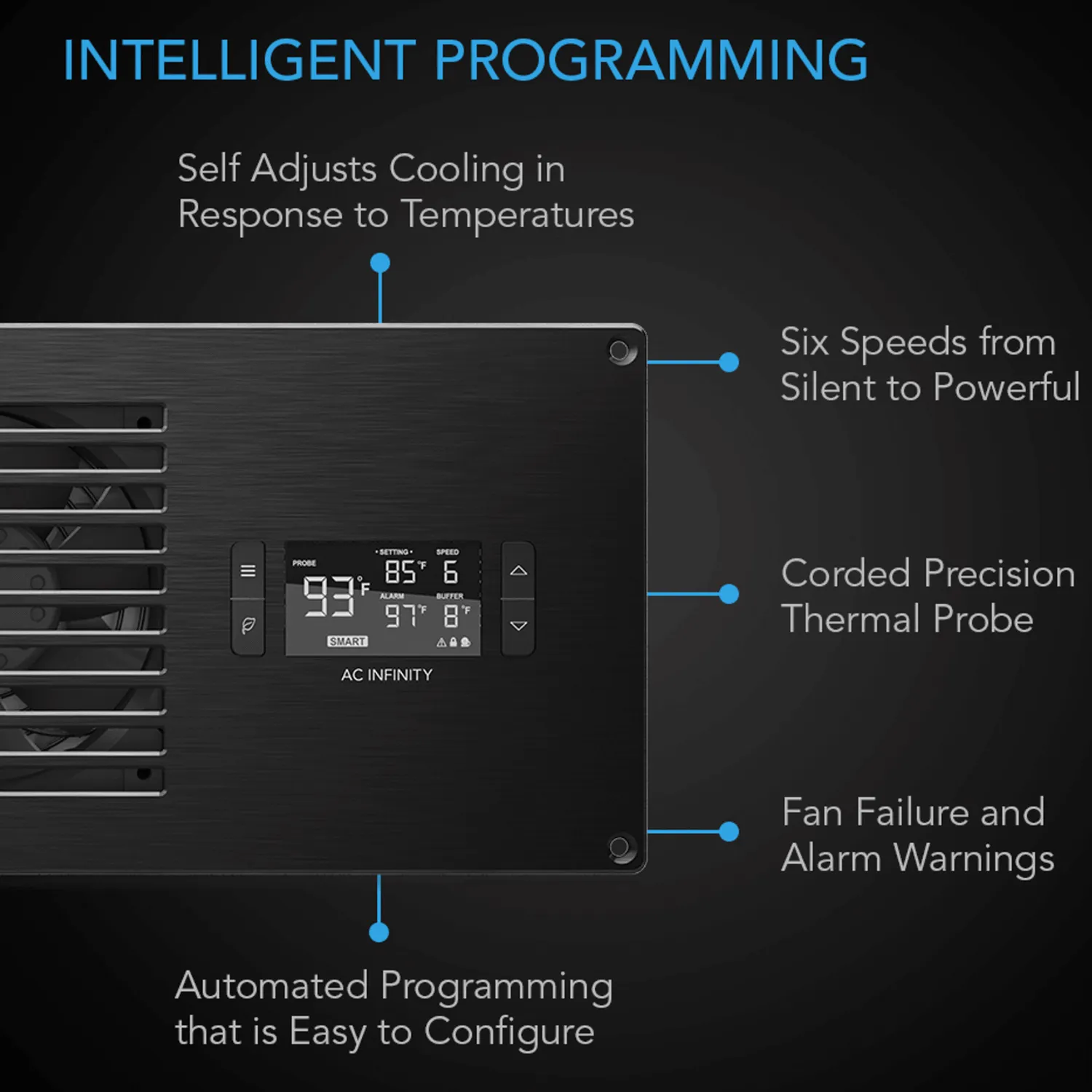

Intelligent Cooling: The programming includes an easy-to-use thermostat and a SMART mode that automatically adjusts the fan’s speed in response to varying temperatures. Additional features include alarm alerts, fan failure triggers, power savings setting, display lock, and backup memory. Six fan speeds are available with three screen brightness settings.

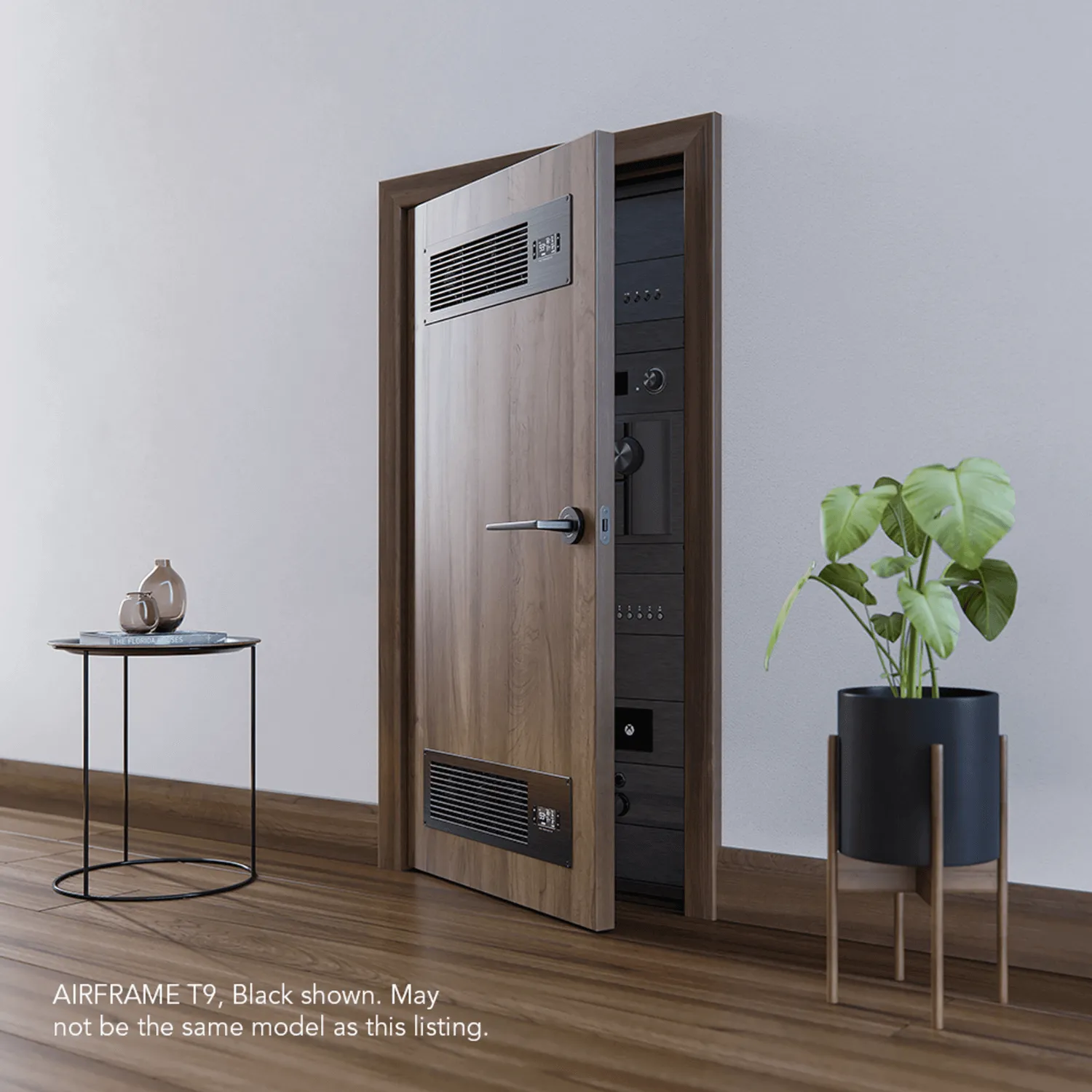

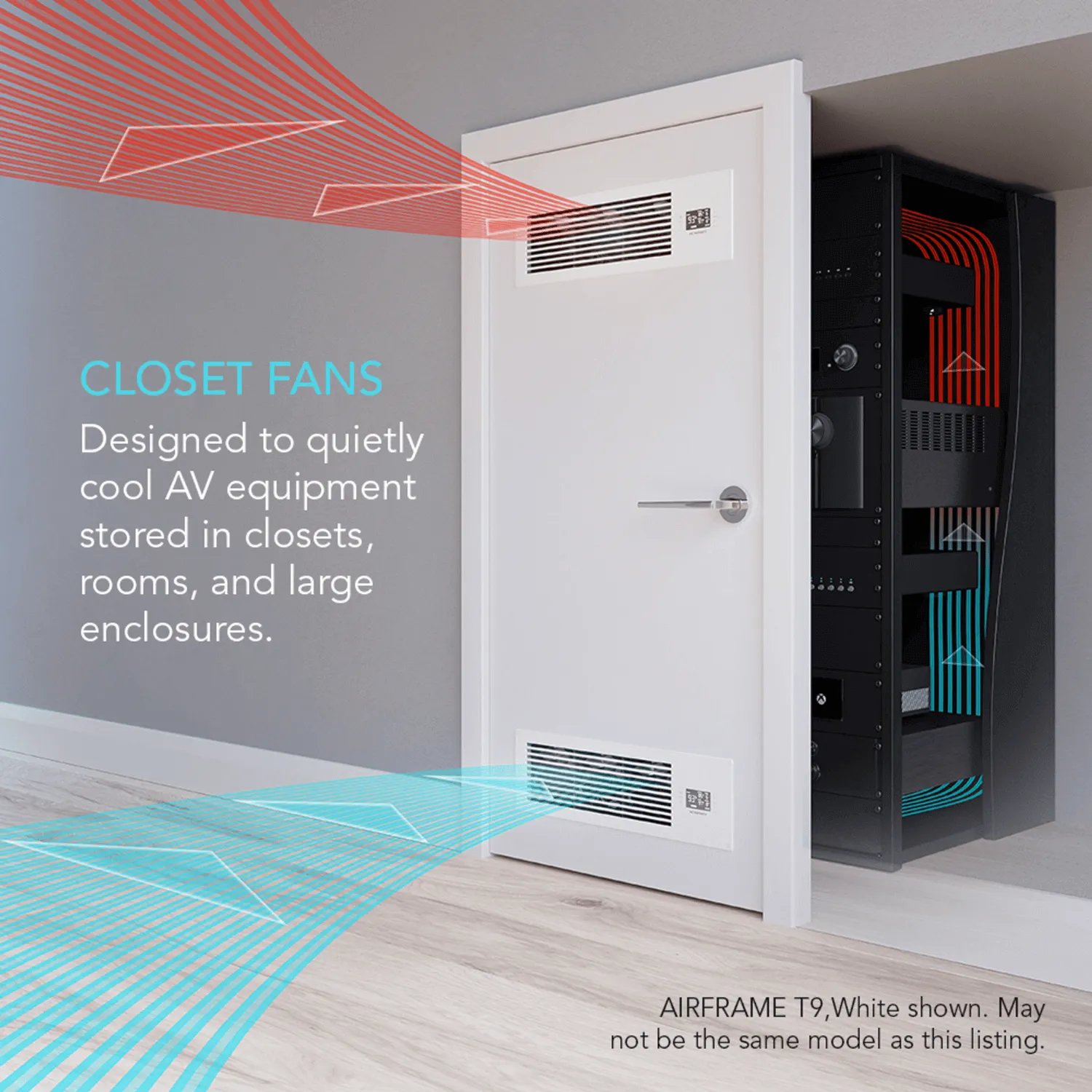

Applications: This high airflow fan system can be mounted on the door or walls of equipment closets, rooms, and larger enclosures. It provides proper cooling for small AV closets holding server, network, IT, and equipment racks.

Specifications

Manufacturer: AC Infinity Inc.

Product Name: AIRFRAME T7 Black, Exhaust

Product Model: AC-AFT7-BE

UPC Code: 819137020153

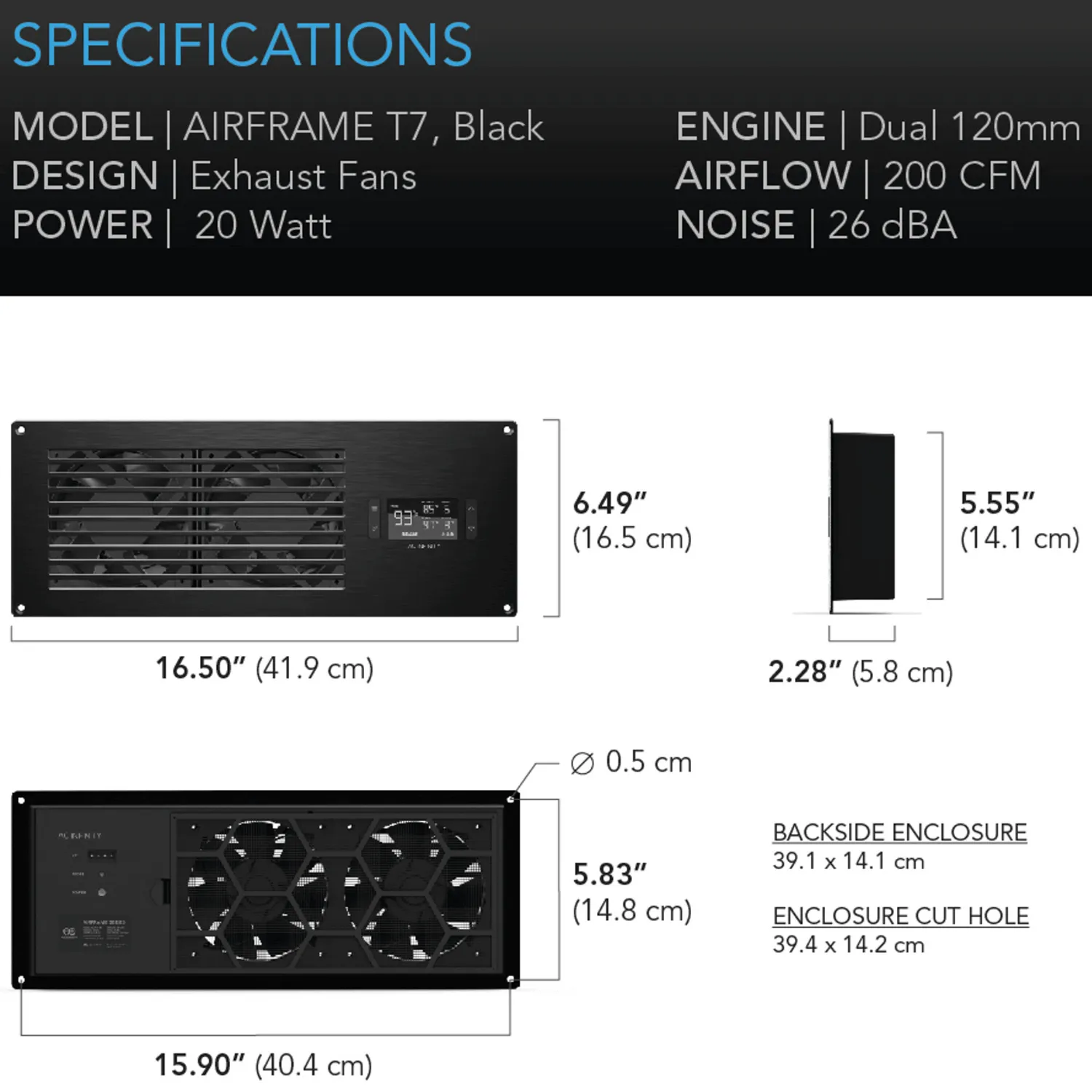

Product and Mounting Dimensions - Fan Unit

Total Dimensions: 16.5 x 6.49 x 2.28 inches (41.9 x 16.5 x 5.8 cm)

Backside Enclosure Dimensions: 15.39 x 5.55 inches (39.1 x 14.1 cm)

Required Mounting Hole: 15.51 x 5.59 inches (39.4 x 14.2 cm)

Hole to Hole Distance: 15.90 x 5.83 inches (40.4 x 14.8 cm)

Screw Hole Size: Diameter 0.197 inches (Diameter 0.5 cm)

Cord Length: 72 inches (6 feet)

Mounting Template

Installation Manual PDF

Product Performance and Technical Specs

Design: Black

Design: Exhaust

Total Airflow: 200 Cubic Feet per Minute (CFM)

Total Noise: 26 decibels

Static Pressure: 5.5 mm-H2O

Operating Voltage: 12V DC

Power: 20 Watts

Current: 1.6 Amps

Wall Adapter Input: 100 to 240 Volts AC

Operating Humidity: 35 to 85% Relative Humidity (RH)

Operating Temperature: 0 to 158°F

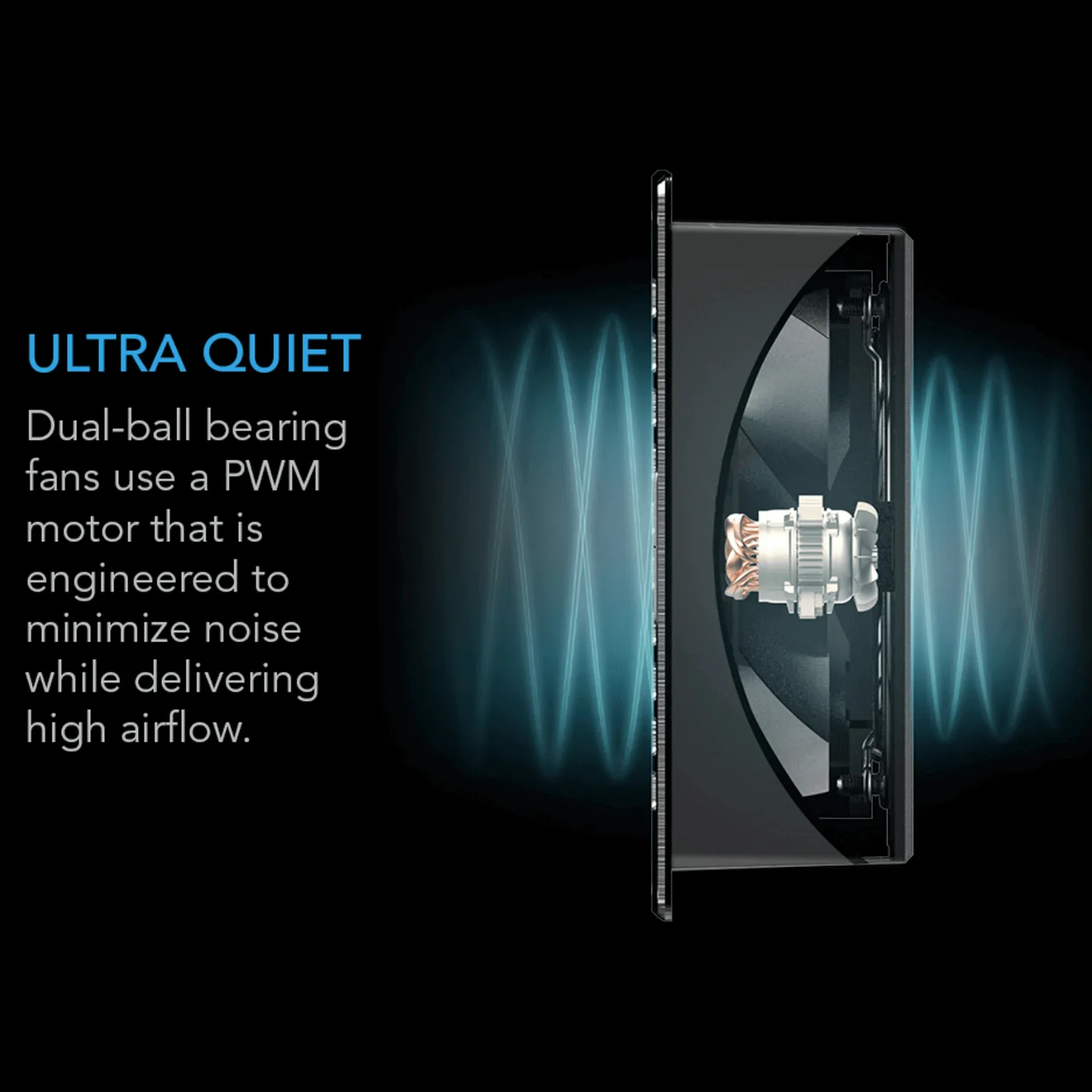

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours

Fan Quality Approvals: CE, RoHS

Data Sheets

Download the product manual:

Download the Mounting Template:

Download the CE Certification:

Download the RoHS Certification:
